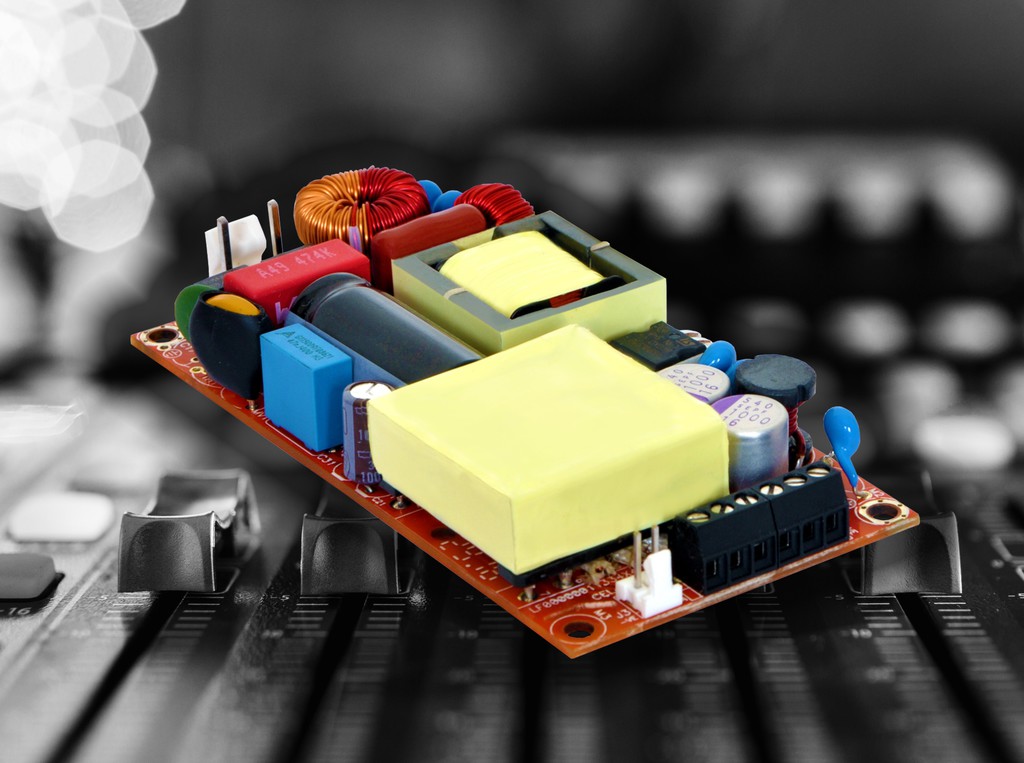

Lowest profile 180W PSU

Available in standard UL/IEC/EN 60950-1 safety-approved and medically-approved versions to ANSI/AAMI ES60601-1 and IEC/EN 60601-1 3rd Edition, the new 180W PSUs have a 80-264VAC input, convection rating of 120W (180W fan cooled), operating temperature of -40 to 70°C, 12V fan output and up to 92% efficiency as standard. Output models are available from 12 to 58VDC.

Comments Mark Gibbons, engineering manager at FiDUS Power: “These sleek new units help miniaturise industrial and medical systems yet still deliver outstanding performance.”

The 180W PSUs come with Molex or optional screw terminal connectivity, AC fail / power good signal, Class II versions and cover kit assemblies. EMC is of a high standard for ease of design in for engineers, with the medial version meeting IEC 60601-1-2 4th Edition immunity. As with most FiDUS power supplies, engineering samples can be delivered from stock on short lead-times, and all models are backed by the company’s 5-year warranty.
