Rugged sensors for small-scale process technology
29 March 2019

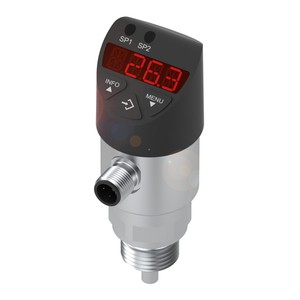

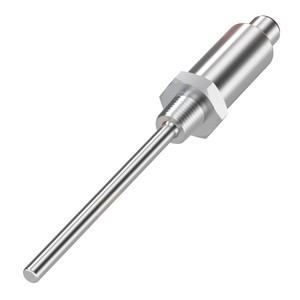

Balluff is expanding its range of sensors for media-contacting temperature detection in, for example, hydraulic power units. New are a temperature sensor with display, a temperature transmitter as well as a PT1000 sensor.

The version without display is particularly compact and vibration-resistant, while versions with the turnable and highly readable display offer high operating convenience and flexible installation.
Depending on the version, the BFT sensors provide PNP switching outputs, analog signals 0...10V /4...20mA or work as a PT1000 sensor. They are simple to install by threading into the process using a standard process connection with G- and NPT threads. Integrating them requires just a 4-pin M12 plug on the sensor.
Continuous monitoring of process media on machines and equipment contributes greatly to process security. Values that need to be maintained are pressure, level and temperature. When for example in a hydraulic system you need to monitor the temperature of the hydraulic fluid, you can do this reliably using our BFT media-contacting temperature sensors.
Monitoring the temperature within the hydraulic loop guarantees correct fluid viscosity and thereby the best performance of a machine. Critical process conditions such as a temperature limit can be controlled directly via the switching output. An analogue output provides continuous measurement results. The BFT temperature sensors also stand out when it comes to monitoring the cooling water, lubricants and compressed air, making them ideal for a variety of applications.
