Low-cost pressure sensor

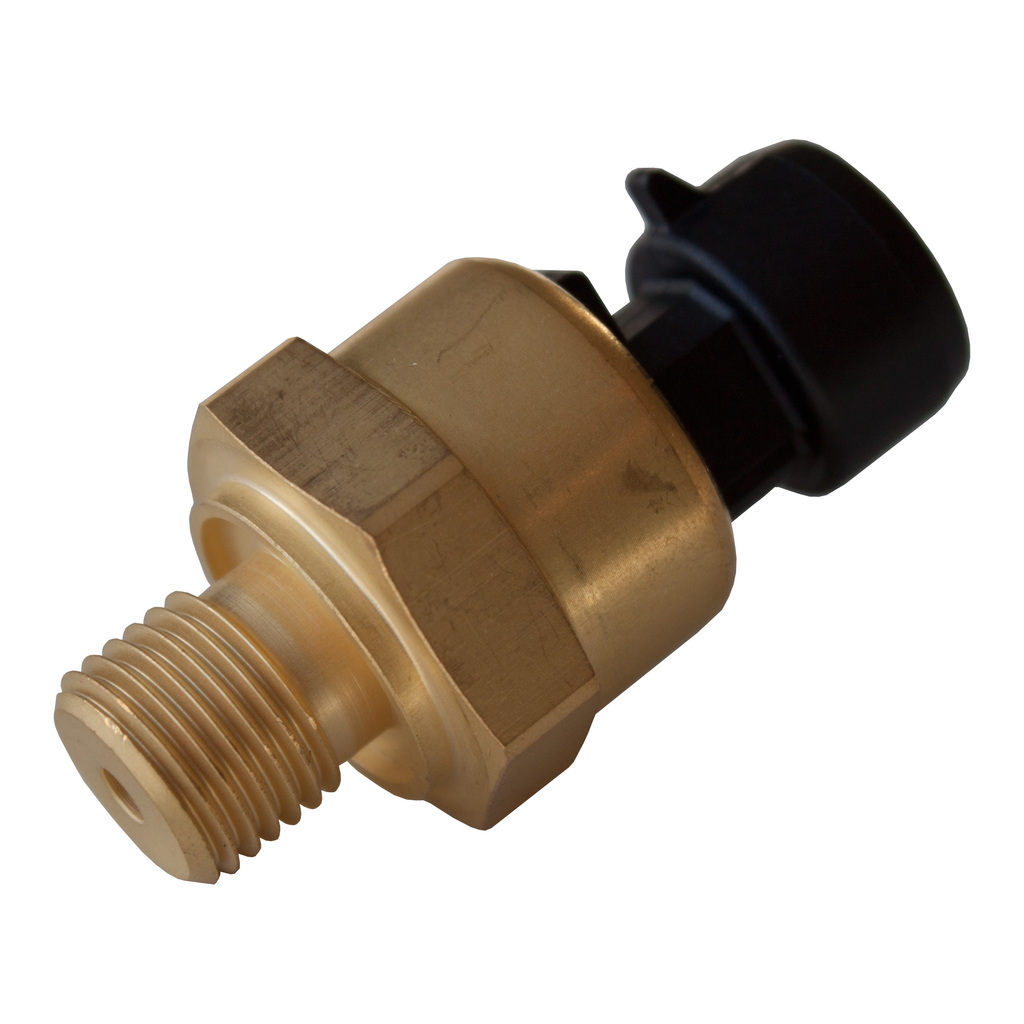

Built for volume production with attractive pricing, the EPT2200 series features a thin film piezoresistive measuring element and is housed in a rugged and durable 22mm diameter brass casing with IP66 protection.

The sensor is available with a choice of G1/4A  or M12 pressure port options and 0..5V or 4…20mA output signals; electrical interfacing covers Packard Metri-Pack and Miniature EN175301-803-C connectors or a 600 mm free cable version – custom options are available on request.

The EPT2200 is supplied in six pressure ranges from 6 bar to 40 bar with accuracy of +/- 1.0% at room temperature and stability of better than +/- 0.1%. The resilient sensor is suitable for use in harsh industrial environments and is compatible with many medias including oil and compressed air for automotive, HVACR, agricultural and other demanding applications areas.
