Increased output assisted

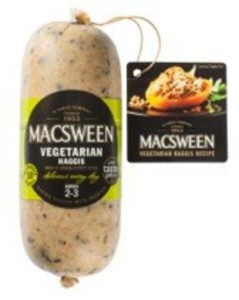

Due to the natural casing of the original haggis line it was difficult to automate the packing line as Macsween MD, James Macsween explains: “As our original product range is packed within its own natural casing our packing lines were manual as sizes differ greatly.   However we standardised the packing of the ‘Delicious Everyday’ range, allowing us to look into automating the packing line.”

Automating a packing line was a first in the 60 year lifespan of Macsween however the company immediately contacted Murray Packaging, Endoline’s Scottish distributor, to install two packing lines as James explains: “Murray Packaging was our first point of call as we have worked with Ian Murray in the past and he has the ability to take on board what we want to achieve and offer solutions.  Also Endoline make the best kit and are British made.”

The installation of these two lines, however, did not come without its complications: “In order to be on the major supermarket shelves by September we needed to be up and running by 25th July,” comments Macsween. “Thankfully Ian took this on board and we were up and running within eight weeks.”

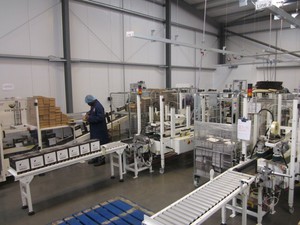

Also both lines needed to be installed within the original factory and space was tight so Murray Packaging and Endoline designed a ‘cruciform’ system with three conveyors running in parallel.

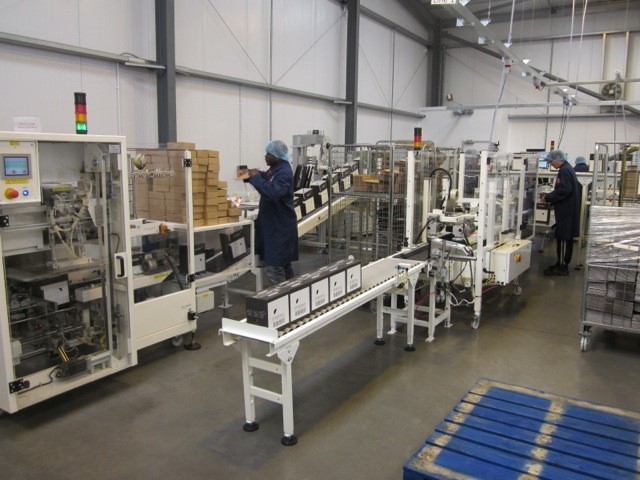

Two Endoline power roller conveyors were installed at the start of each packing line where a manual worker puts the packaged product onto these once it has been run through a chub labeller. Each of the packing lines has an elevated conveyor which runs the product from the power roller to a packing station where four manual packers are ready to pack the products into a formed box. A single, fully automatic 248 case erector feeds BOTH of these packing lines and formed cases are transported to the packing stations via a conveyor running above the packing stations.

“A control system was integrated into the conveyor to accumulate and control the in-feed of the empty boxes to work in tandem with the pace of the manual operators so as each box is removed from the line another is moved along ensuring a constant smooth flow.” Ian Murray, MD of Murray Packaging, comments.  “As the empty cases are light we ran the conveyor from the case erector up an incline with a 90 degree bend to run at head level for the packers, not only meeting the factory’s space constraints but ensuring it was ergonomically friendly to the packers so there was a minimum twist and turn effort.”

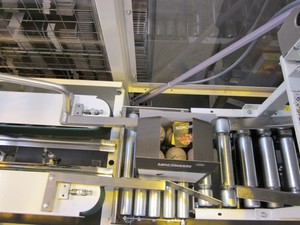

Once the packers have filled the case with the desired quantity of product, either 6 or 8 depending on the individual customers’ requirements, the full case is then placed by the packer onto a third power roller conveyor, which runs parallel with the packing station, to be sealed. Two fully automatic Endoline 602 case sealers are fitted at the end of each line to close the top flaps of the boxes and accurately tape the tops for a flawless finish. Both the case erector and case sealer can be easily adjusted to deal with different case sizes.

Combined both lines can run up to 40,000 cases of the ‘Delicious Everyday’ range per day, increasing Macsweens overall output by 200%.
