Life sciences sealing

11 May 2017

The LS222 perfluoroelastomer product recently launched in the DuPont Kalrez range of high performance sealing products is available in the UK from Dichtomatik, an official authorised DuPont Kalrez distributor. This product range has been designed specifically for operation in the Life Science markets including pharmaceutical and medical packaging together with the food and beverage industries.

Dynamic qualities provided by the Kalrez product include operation at elevated temperature levels combined with optimal chemical resistance to ensure that these sealing products can be successfully utilised in a wide range of devices

This LS222 (FFKM) range offers reliability and performance, providing best in class FDA-compliant seals, having both appropriate elastomeric properties and high endurance and sealing level capabilities. They combine performance, efficiency and cleanliness, making them an ideal replacement in markets where PTFE components have previously been the seal material of choice.

The FFKM products feature high thermal and steam tolerance up to 327°C, as well as extensive chemical resistance qualities to over 1800 different chemicals. They ensure long-term performance with minimal seal changes and equipment repairs, leading to fewer inspection requirements and increased production-up times and yields. Kalrez® parts have proven to provide superior sealing and longer service life when compared to lower performing elastomers, resulting in longer, more effective performance combined with increased safety and more efficient production processes.

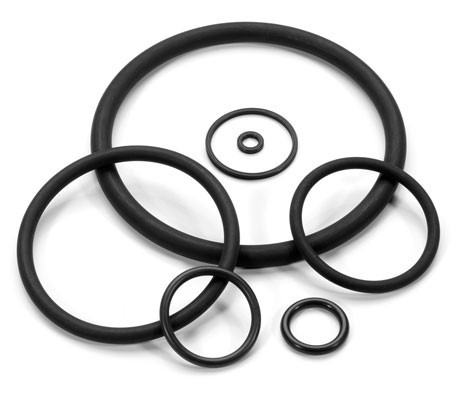

The LS222 products represent a major expansion to the Kalrez® range to meet demands from equipment OEMS who require high volumes of specific high quality sealing components (ie applications requiring FDA and/or USP VI certification). Typically such applications cover more than 10,000 parts per order, with packages of 500 pieces per bag. These requirements are typically for O-ring and custom parts featuring outer diameters up to 2” (50.8mm). However, alternative sizes and special shapes can also be manufactured to order.

Manufacturers operating in the critical Life Sciences fields can utilise the high volume LS222 product range to achieve reductions in their total operating costs resulting from the excellent and universal chemical and temperature resistance as well as extended seal life being achieved. They will be able to operate with reduced overall plant sealing costs compared to other perfluoroelastomers, enabling more efficient sealing together with higher quality and cost effective production procedures resulting in maximum outputs.
