Magnetic encoder

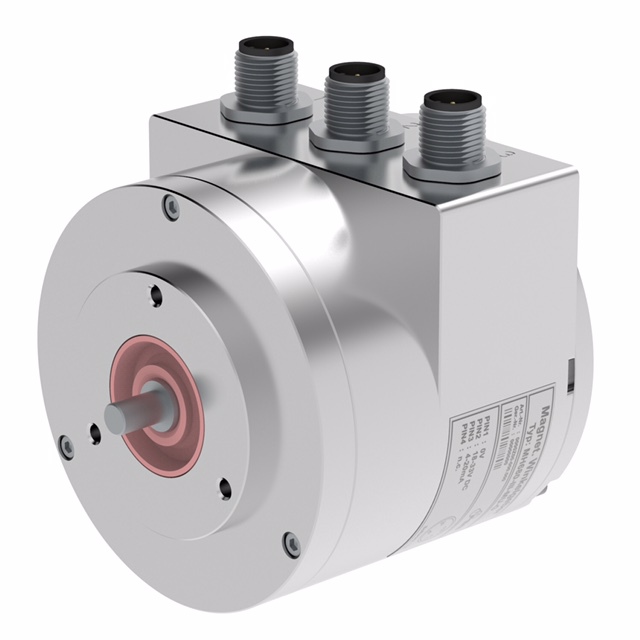

The single-turn encoder is equipped with three electrically isolated Hall measuring systems to meet even the most demanding requirements in safety-related applications, i.e. in cases where redundant signals for monitoring do not suffice or additional signal outputs are needed to visualise the process.

The device enclosures are manufactured from Hart-Coat aluminium and provide corrosion, shock and vibration resistance. Thanks to their wide temperature range of -30 °C to +80 °C and IP67 ingress protection they are suitable for even the most demanding environments. The new encoder features a resolution of 14 bit and covers a measuring range of 0-360°. Signal output is provided per channel via a 4-20 mA current interface.  FSG provides each channel with its own membrane keypad for signal setting, therefore allowing for independent calibration of every signal output.
