Haptic puck switch

15 November 2017

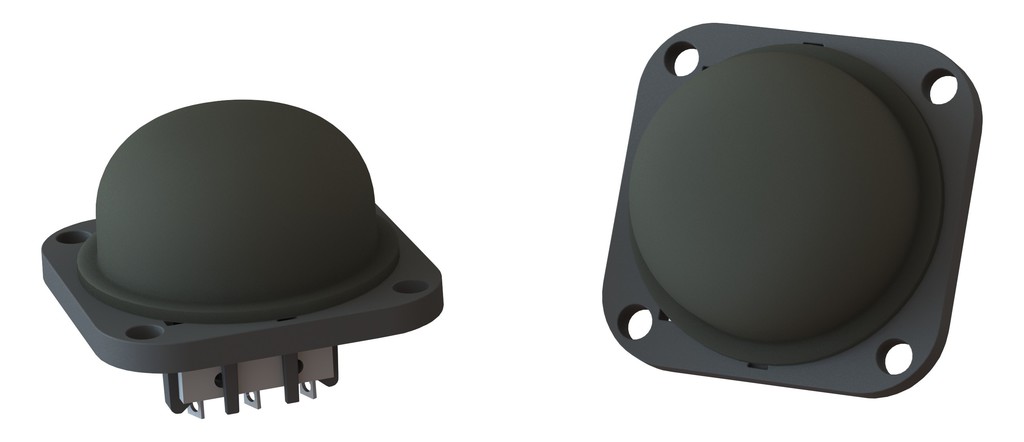

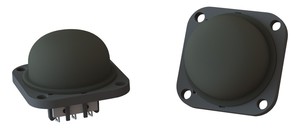

Herga Technology has expanded its range of switch controls with the new 6244 series haptic puck switch. The hand or foot operated puck (or bellows) style switch features an audible click when pressed and is aimed at machinery and equipment switching tasks where both tactile operation and audible response are essential requirements.

The robust and durable 6244 comprises a semi-rigid PVC bellows and a thermoplastic base that combine for strength, stiffness and long working life. Sealing protection is to IP67 and all manufacturing materials and components meet IEC 60601-1 medical standards. Its micro switch rating of 0.1A for 125/250V AC or 30V DC operation is available for both SPDT and DPDT contact configurations with momentary action.

With four-hole fixing and electrical connection via spade terminals for soldered cable, the haptic puck switch requires a 37 mm diameter hole for panel installation and has a nominal height of 20.4 mm.
