High performance pneumatic clamps

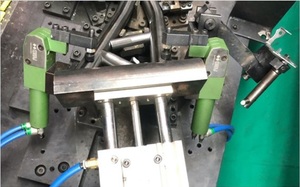

Designed for robotic use, the clamps are easy to install, robust and well proven, with fast and reliable operation supported by simple power and control connections which enable rapid installation and setup. Typical applications may be found in warehousing, welding stations, framing and assembly stations, special machines, tooling, jigs and fixture manufacture, dies and mould making.

Nigel Pritchett, Elesa’s MD in the UK, said: “The strong clamping action of the Misati range features mechanical interlock at closure with an integral non reversible ramp mechanism which takes over when the jaws are closed, this ensures that peak loads are directly transferred to the body structure of the clamp and not reliant on the pneumatic pressure.”

Pneumatic clamps from the range are specialised to match various industrial applications such as punching, welding, fastening/assembly and painting, with modular accessories that are convenient and readily interchangeable. These make fitting and adjustment straightforward, including gripper fingers for sheets or delicate materials, plus irregular shapes, hollow objects/tubes – also visually indicating open/closed/ready sensors. The choice of cylinders and matching accessories suit engineering industries such as automotive, rail, special vehicles, electronics and plastics production. They also work well in the wider fields of food processing, building construction, furniture manufacture, agriculture, chemical processing and pharmaceutical production as well as the medical industries and similar.

Misati pneumatic cylinders feature a double acting operation in diameters of 20mm, 32mm, 40mm and 50mm with three arm configurations dependent on the clamping arrangement required. The range is defined by high holding force, small size and reduced air consumption, plus a 7 year/20 Million cycle guarantee.
