Retrofittable scale

A minimum of two pressure sensors are installed into the hydraulic lift system. The pressure signals are captured, filtered and corrected by measurements taken by an inclinometer. Slope corrections are made from another inclination sensor on the chassis.

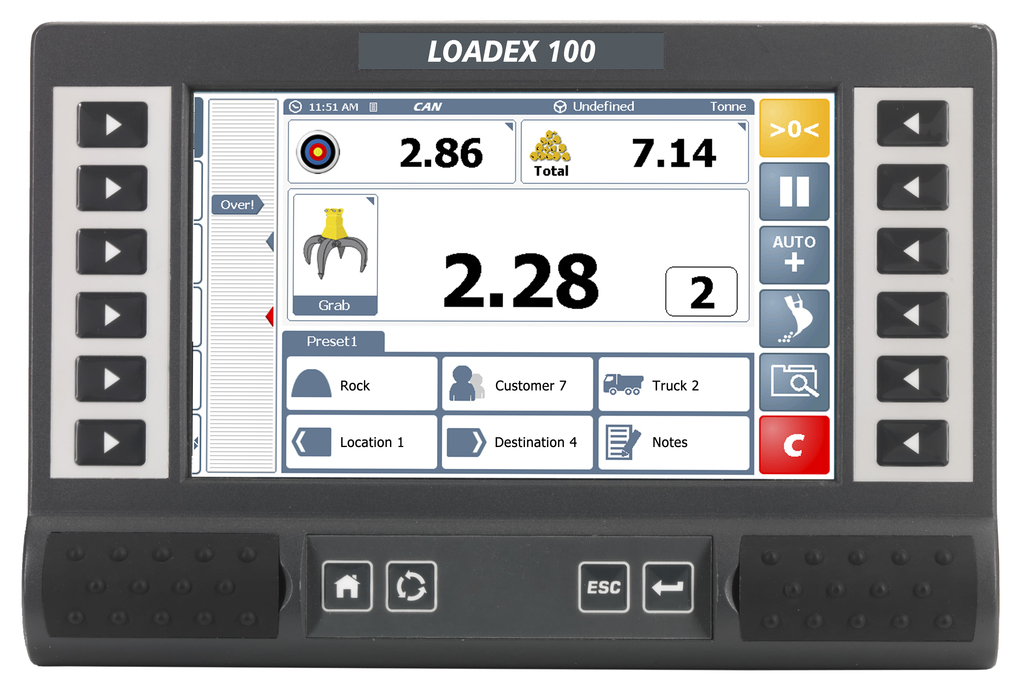

Dipper arm position is established by a mechanical angle sensor mounted on the boom to dipper arm pivot. This provides fast and precise dipper arm angle measurement that is not affected by inertia g-forces or acceleration effects. The final calculation is sent via CAN protocol to the LOADEX 100 cabin terminal. Load and store information is saved in the terminal where it can be distributed to an in-cab printer, modem or internal SD flash card. Stand N12
