Simplifies troubleshooting

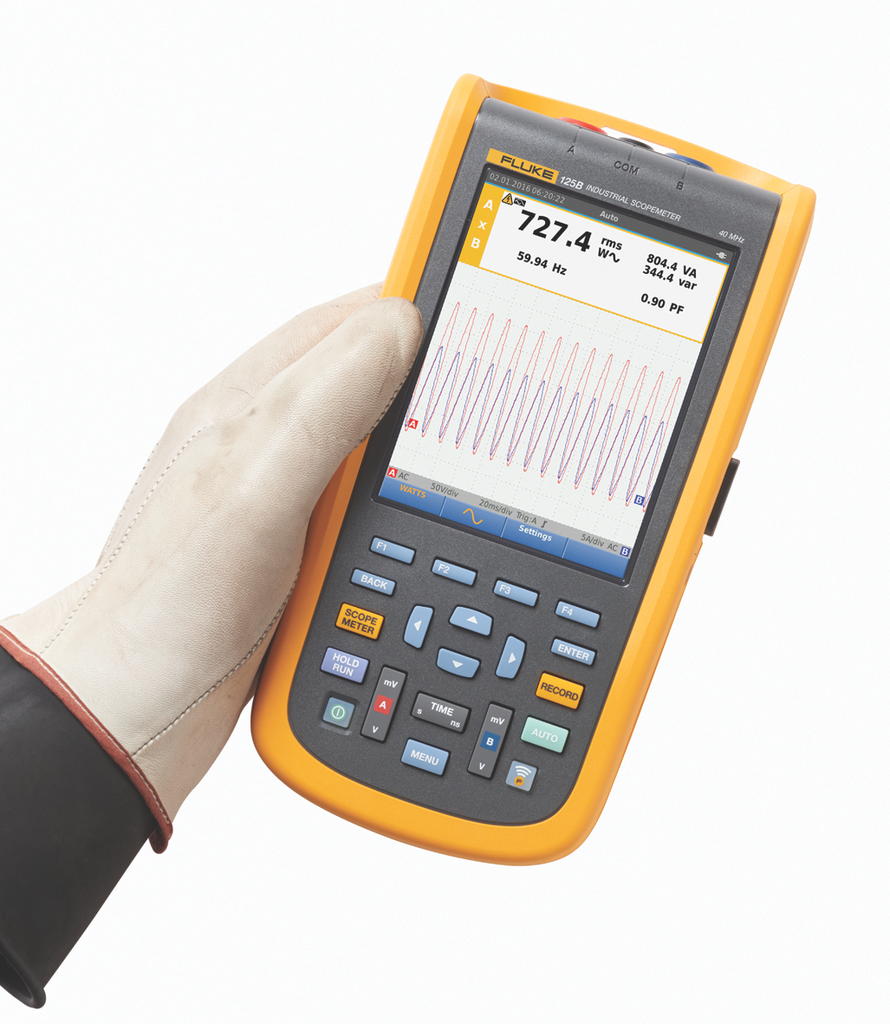

The compact ScopeMeter 120B Series features Connect-and-View technology that recognises signal patterns and automatically sets up the scope’s triggering, amplitude, and time base, eliminating the typical trial-and-error setup process.

Once the waveform is captured, the new IntellaSet intelligent measurement detection automatically selects key measurements based on the acquired waveform type and displays the most relevant measurement values (for example, Vrms and Hz for a line voltage signal, or Vpeak-peak and Hz for a square wave), helping technicians easily identify and characterise potential signal faults.
