Self-aligning lead screw nuts

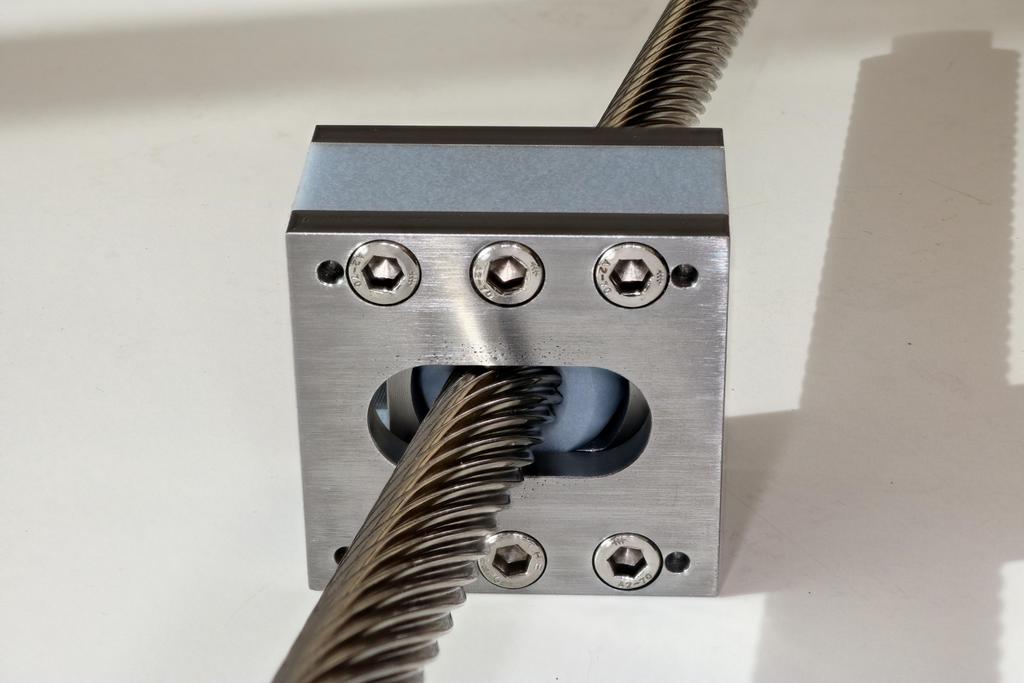

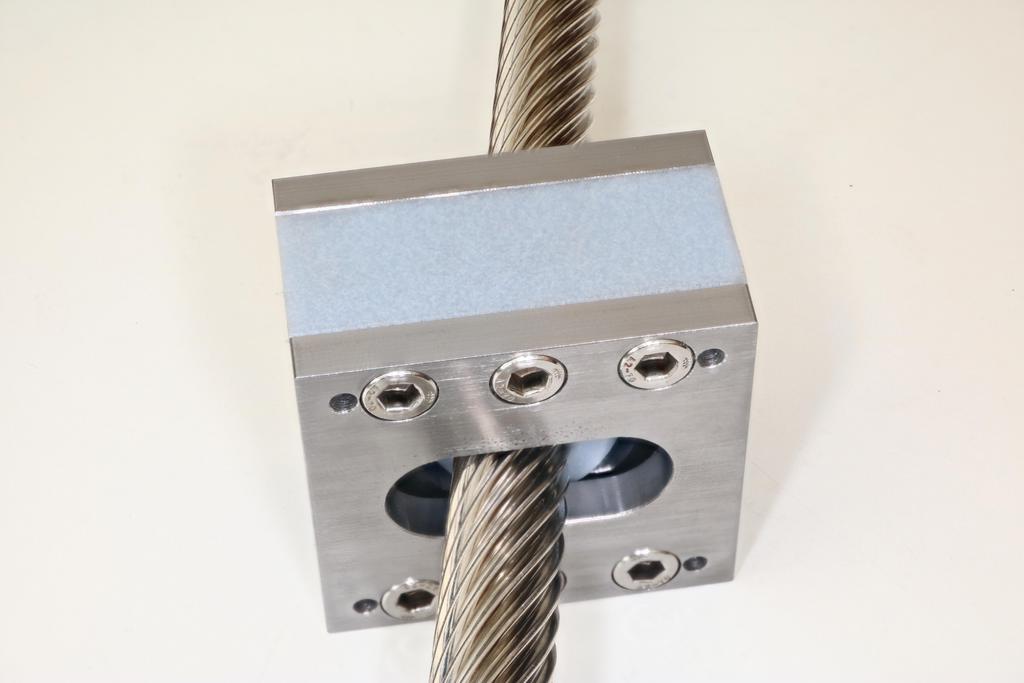

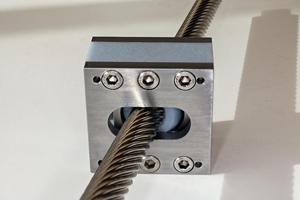

The Punk Nut is reported to deliver perfect alignment at all times, constantly removing dynamic and static alignment errors in one or two axes; effectively, it is permanently operating as if there was zero lead screw alignment error, allowing flexible or moving structures, or misalignment issues to be accommodated.

The Single Axis Punk Nut can compensate for up to +/-15° angular misalignment in one plane with a linear displacement in one axis to account for the trigonometric offset giving an extended triangular movement. The Double Axis Punk Nut can compensate for up to +/-15° angular misalignment in two planes with a linear displacement in two axes to account for the trigonometric offset giving an extended conical movement.

Punk also offers designs that replicate standard lead screw nut footprints or interfaces, suitable for retro-fit.

For further information please contact:

www.punk-couplings.co.uk

[email protected]

0117 336 1111

www.mooreinternational.co.uk

[email protected]

01202 623 393
