EtherCAT I/O system

The easy-to-install I/O module for harsh environments can be used to implement cost-effective vibration and shock/oscillation monitoring directly in the field. The machine-mountable device also enables tilt monitoring in longitudinal and transverse direction.

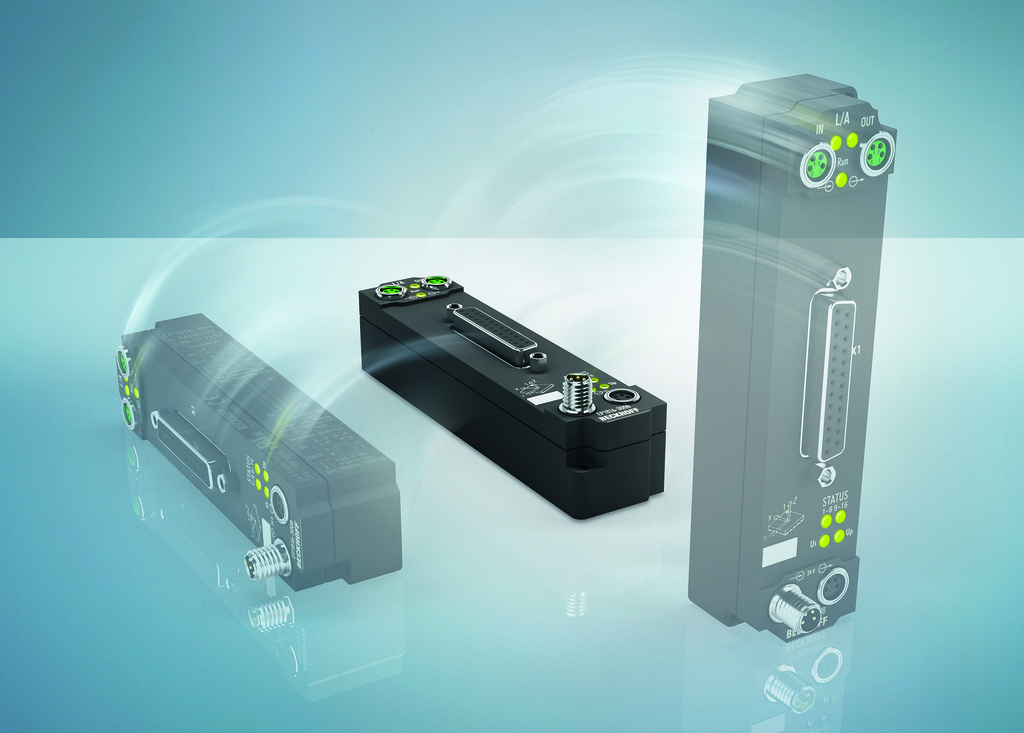

The IP 67-rated EP1816-3008 EtherCAT Box features two integrated 3-axis, 16-bit acceleration sensors with resolution options of ±2 g, ±4 g, ±8 g and ±16 g. The sampling frequency is 1 Hz to 5 kHz. These so-called MEMS (micro-electronic mechanical systems) are based on forked silicon structures, which have movements or vibrations that result in a capacitive change and a corresponding signal value.
