Micron accuracy

24 April 2014

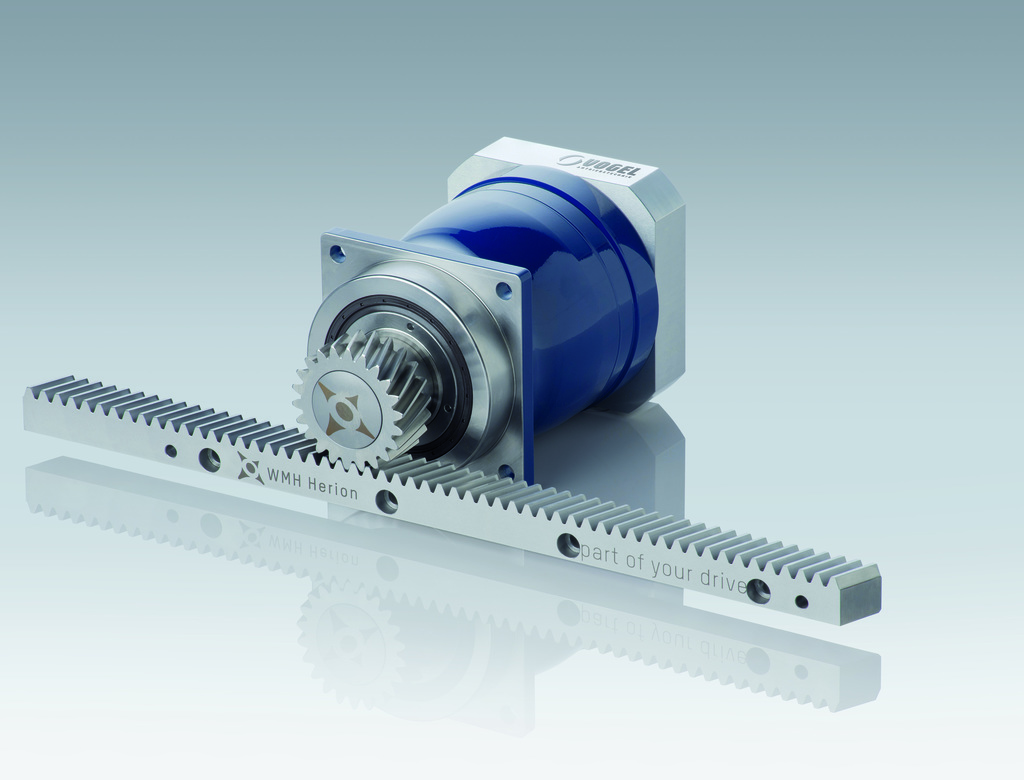

New from Techdrives is a rack & pinion system with micron levels of accuracy at speeds from 0.1 to 6.5 m/s. Six sizes of gearbox give linear forces from 2300 to 16000N.

The rack is available in standard lengths from 0.5 to 2.0m. It can easily be extended without limit using mounting pieces that accurately set one rack from the next. The rack & pinion system has the advantages of high accuracy and rigidity, suiting machinery such as machine tools and robot gantries.

The rack & pinion system is a combination from two manufacturers. Vogel specialises in precision gears and supplies the gearbox to low-backlash servo levels. Minimal backlash in a range 1 to 3 arc mins is available. The rack and the pinion come from WMH Herion, a company with 60 years’ experience in power transmission racks and gears.
