Ultra-high pressure control valves
04 March 2015

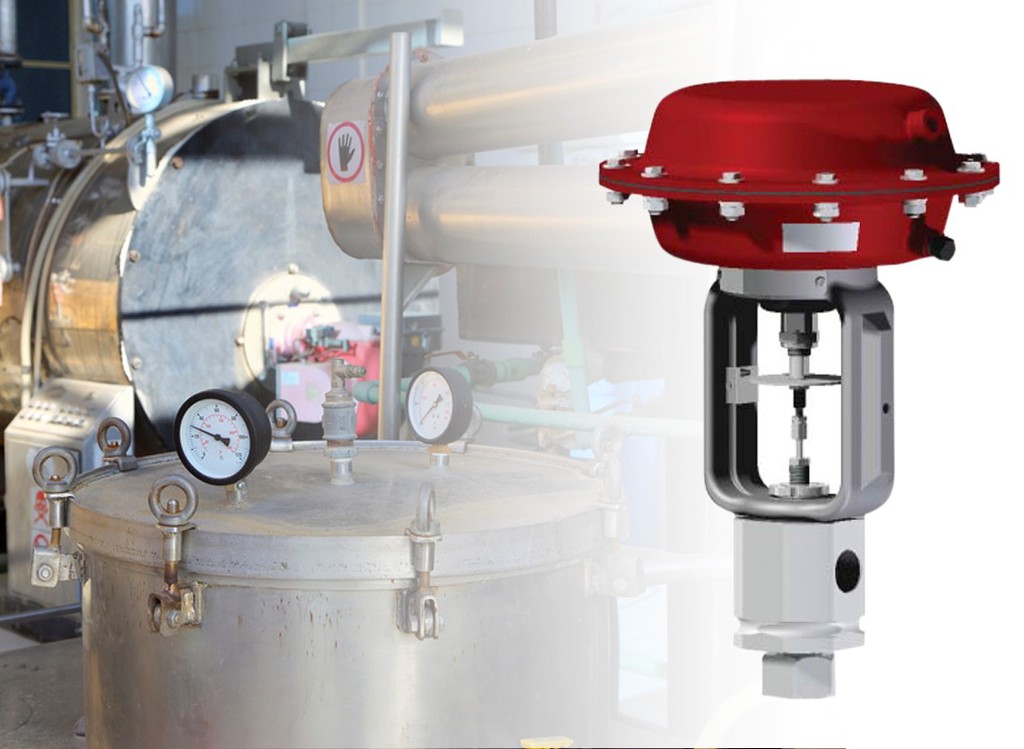

Badger Meter HP-60 ultra-high pressure control valves are suitable for offshore, oil and gas control applications with up-stream pressures of up to 60,000psi. Available in the UK through liquids handling specialists Pump Engineering, the Type HP-60 control valve utilises a 17-4 PH body along with a solid Stellite inner valve assembly.
The HP-60 valve is also suited to use in industrial research and process pilot plants on liquids and gases, with typical applications being chemical injection, for example in the production of high pressure, low density polyethylene (HPLDPE).
Standard features include pressure rating to 60,000psi (4135 Bar) @ 100˚F; a wide range of interchangeable trims; choice of linear or quick opening trims; ANSI Class lll shutoff (size P-1 through P-9) and ANSI Class lV shutoff (size K through O).
