M-Bus sensors connected
15 August 2015
When Swedish system integrator, Processcomponent, installed a monitoring system in an apartment building it found that sensors for temperature, energy and water communicated via M-Bus and the energy monitoring system — the OptoEMU from Opto22— used Modbus-TCP.

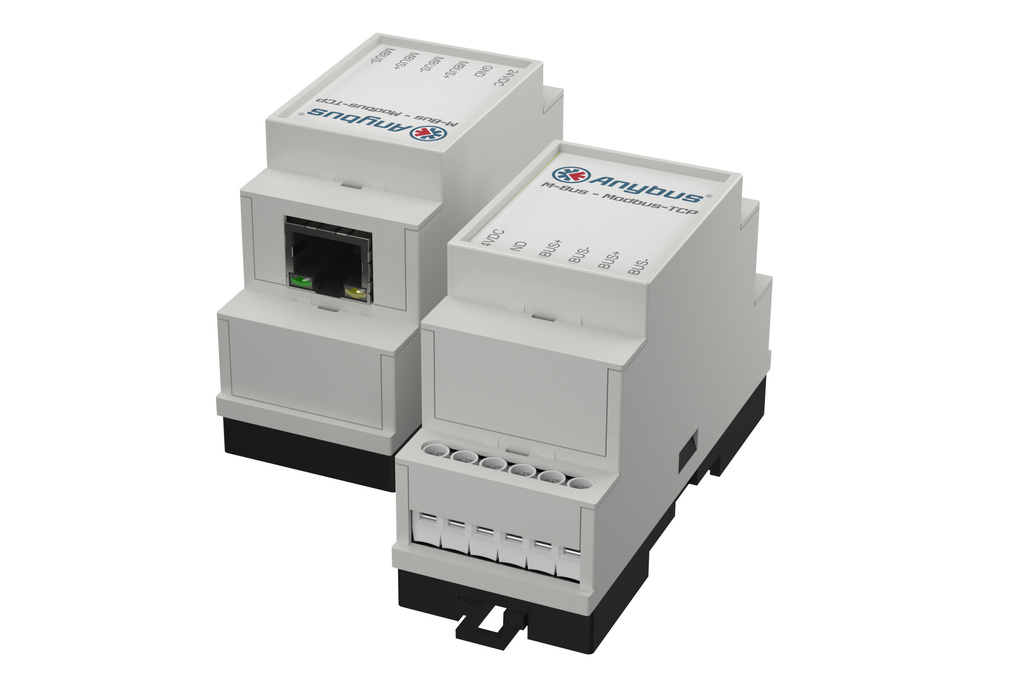

To solve this communication issue, Processcomponent found the Anybus M-Bus to Modbus gateway from HMS Industrial Networks. The gateway decodes M-Bus telegrams and maps them directly to Modbus registers. This way, the sensors can be understood by the OptoEMU and their values show up directly.
"What I really like about the Anybus M-Bus gateway is that it is very easy to use and quick to install," says Jonas Karlsson, sales manager at Processcomponent. "All M-Bus sensors are automatically detected by the gateway without you having to do any configuration. This saves a lot of time since you don´t have to configure each meter individually — they all show up automatically, complete with serial number, name, and all current values. Indeed, you don't even have to be on site as long as you have someone connecting the wiring from the sensor to the gateway. Before, it could take several hours to configure a single meter running M-Bus. With the Anybus gateway we can set things up in 10 minutes!
"The actual process is quite easy," continues Karlsson. "You do a search for available M-Bus sensors connected to the gateway, and you get back Modbus registers from the sensors. These can be interpreted by the OptoEMU and provide the customer with real-time data from the sensors.

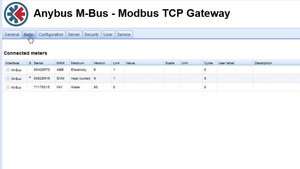

The configuration is handled in a web-based configuration tool which allows users to set up the gateway in a web interface. No programming is necessary - the values from the meters automatically show up in the OptoEMU as Modbus registers which it can understand and process.
OptoEMU – a solution for energy monitoring Processcomponent has been very successful in installing the OptoEMU - an Energy Monitoring System (EMU) which collects energy data from buildings, electrical subpanels, and individual equipment like chillers and compressors. The OptoEMU delivers the data so users can view it online and use it in a business application and do invoicing for example. Users can also get alarms whenever certain levels are reached.
The building in Gothenburg is now equipped with Anybus gateways connected to two OptoEMU-DR2 one for the 72 apartments and one for the grocery store. The measured values can be logged to an Excel file which can be downloaded via FTP. The readings can also be sent directly to an SQL database or to HMI/SCADA systems via an OPC server.
Since the building owners now have access to real-time values from the different apartments in the building, they can be on top of consumption and get alarms when certain thresholds are reached. Access to meter values also enable rapid and automated invoicing to apartment owners.
"The Anybus gateways have certainly made life easier for us and our customers," finishes Karlsson. "By getting M-Bus values into the OptoEMU quickly and easily, we can get our monitoring system up and running faster which is beneficial for both us and our customers."
