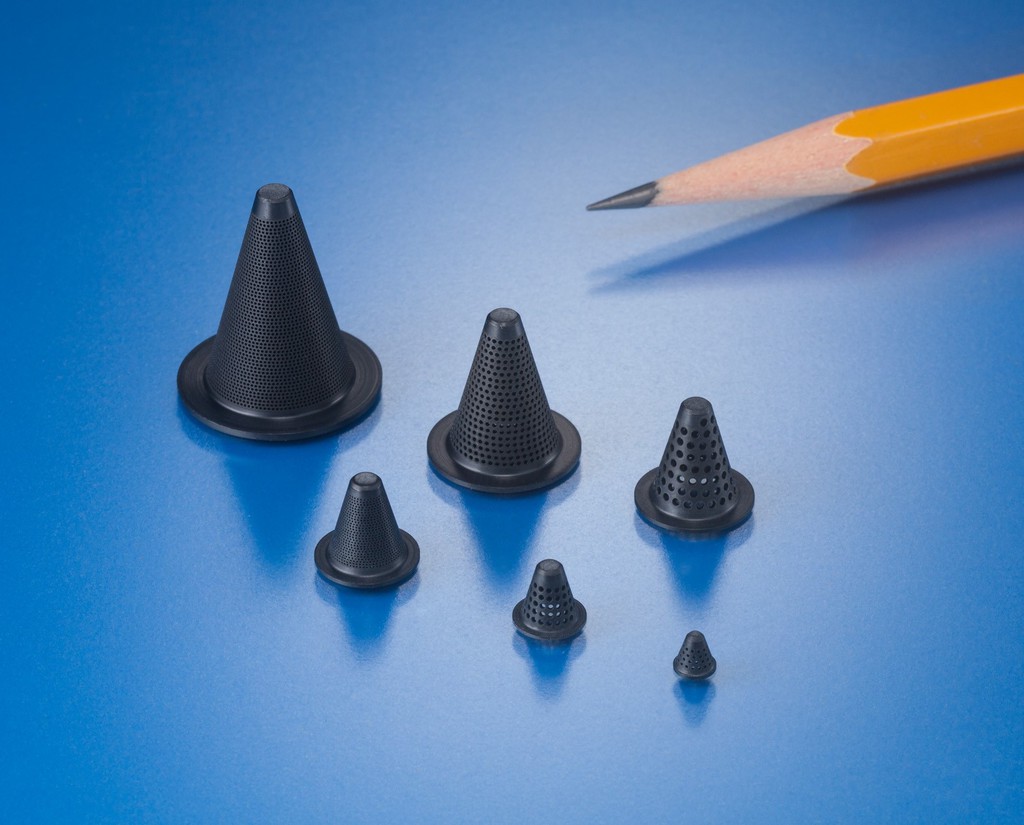

Robust PEEK safety screens

This high performance engineering thermoplastic provides excellent chemical resistance and superior mechanical properties which results in an extremely lightweight, yet robust, single piece construction safety screen.

Nominal weights range from 0.01 grams for the smaller FSHF1304 130 flange mount screen and 2.4 grams for the largest FSHF6700 670 flange mount option. This compares to approximately 1/6th of the weight of similar screens constructed from stainless steel.

They can withstand pressure differentials up to 1000 psid without rupture. In addition to being chemically inert these screens feature an easily flushable, non-depth style filter design which is ideal for many applications in the medical industry.  Also, with PEEK’s ability to maintain its superior strength and dimensional stability at higher temperatures, these screens will also be suitable for the demanding requirements and hostile environments found in aerospace, marine and oil industry applications.

The screens are available in 6 different flange sizes ranging from 3.302mm to 17.018mm in diameter and 7 different hole sizes ranging from 75 microns to 500 microns.  Custom designs are also available for more specific application requirements.
