Flexible contact inserts
26 February 2018

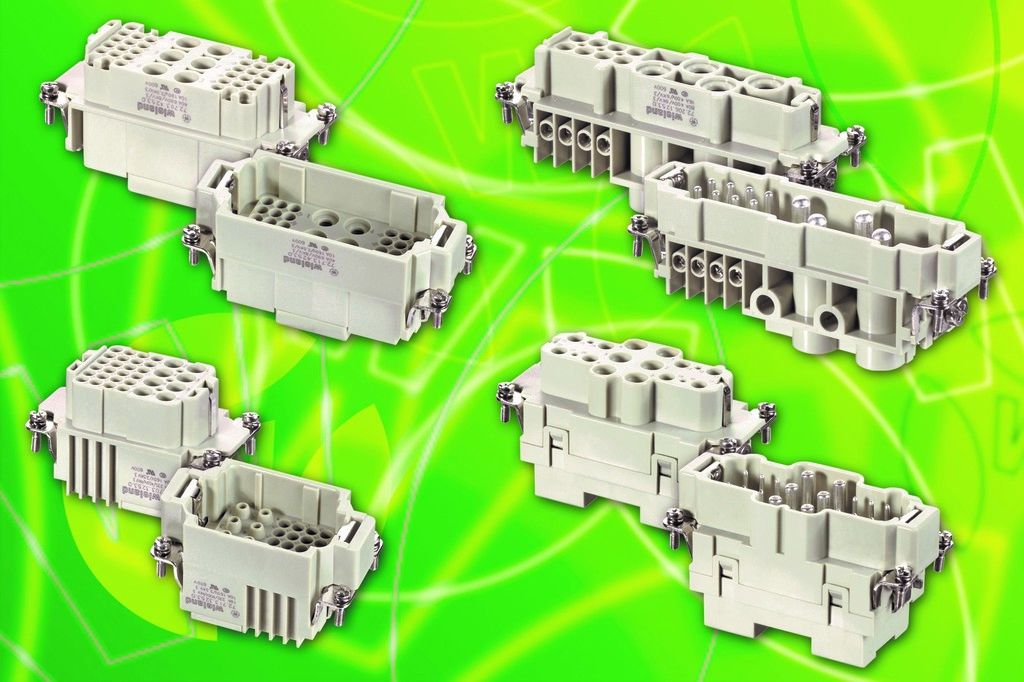

Wieland Electric has added new high performance revos POWER contact inserts to its existing range of revos POWER industrial connectors. Designed for applications in control and power engineering, the contact inserts have been engineered for use with housing sizes 16 / 16H or 24 / 24H.

revos POWER hybrid connectors are available with 4/8, 12/2, 6/12 and 6/36 terminals (power/control respectively). The 4/8 unit has rated currents of 80A/16A whereas the other inserts are rated at 40A/10A.
The type of connection is either compact axial screw or crimp, providing termination for a wide range of wire sizes 0.14 – 16 mm² for power contacts and 0.14 – 2.5 mm² for control contacts. The maximum rated voltage depends on the version with 230, 400 or 690 V for the power contacts and 230, 250 or 400 V for the control contacts.
revos POWER industrial connectors all feature captive screws and are designed for 500 cycles of operation on average. With so many versions the revos POWER contact inserts are suitable for use in a wide range of applications.
