Modular circuit designer
17 April 2018

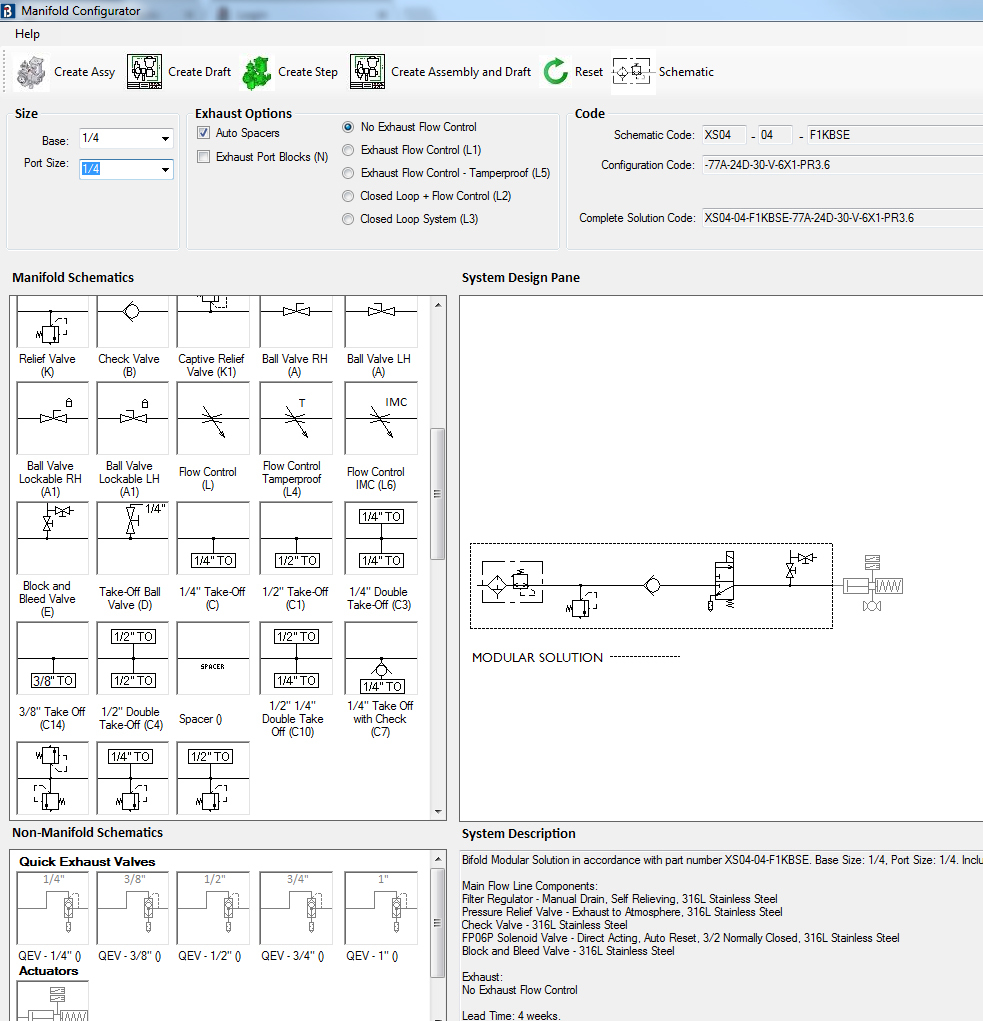

The Bifold Circuit Designer allows users to design a bespoke modular solution or tubed valve circuit comprising a series of valves in any order or orientation (where applicable) using a schematic drag and drop system. The completed system can then be bought as a modular solution or as a list of separate valves from Bifold.
Users can organise and manage projects in the Project Centre, viewing the modular solution code and description or a list of separate valves and fittings. It is possible to create a PDF schematic diagram and description for sending with a quote, in addition to viewing and printing the modular solution bill of materials or separate valves.
For users with Solid Edge ST6 and above can create a 3D model and dimensional drawing for a modular solution.
Download and run setup.exe from: https://www.bifold.co.uk/BifoldCircuitDesigner.aspx
