Accuracy baked in

24 February 2023

An industrial bakery has increased product quality and reduced production costs after installing high accuracy ball valves, as Kieran Bennett outlines

AT A large industrial bakery in the UK that produces a wide variety of products, the plant’s liquid improvement system demands accurate doses of additives into dough mixtures. These additives are essential for the baking process, and impact attributes such as taste and shelf life. The liquid additives include water, vinegar and oil, as well as ingredients suspended in liquid solutions, such as yeast.

Accurate dosing is a vital aspect of industrial baking, and imprecise levels of ingredients can impact product quality, including taste, form and shelf life. Moreover, this reduces efficiency with a higher level of inferior product and wastage. The unnecessary addition of expensive ingredients also increases the cost of production.

Inaccurate dosing

The bakery works with 500kg batches of dough, while adding ingredient quantities as little as 100g. As a result, an error of just 3-4g can significantly impact the end product. The bakery was equipped with an automated system, but it was providing insufficient accuracy. The primary cause was the system’s angle seat valves that generated excessive dosing volume as well as variability, creating inconsistent dosing. As a result, the bakery and its engineering partner turned to Bürkert to upgrade the valve system and ensure optimum accuracy.

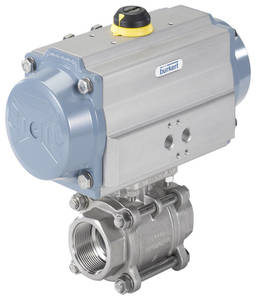

The bakery’s engineering team integrated its PLC-based system with a suite of Bürkert electromotive ball valves with high-speed actuators in ½” and 1” dimensions. Various spring combinations were tested with the fast acting, rapid-closing valves before the optimum shut-off rate was achieved.

The result was vastly improved flow regulation, enhancing the speed, accuracy and consistency of dosing control. For the bakery, this meant an increase in product quality and a reduction in production costs.

The primary challenge in establishing dosing accuracy came from the type of valves originally installed. Angle seat valves were previously specified but they didn’t provide sufficiently fast or consistent closure rates to ensure flow control accuracy.

The valves’ seats had also deteriorated over time and changed their form, which meant an inconsistent flow rate that was exacerbated under high flow conditions. A previous attempt by the plant’s engineering team to improve accuracy by installing stroke limiters to restrict the valves’ orifice sizes was insufficient to resolve the issue.

Analysing the situation, Bürkert advised that integrating a ball valve and actuator combination would achieve a significant increase in dosing accuracy. The valve’s fast-closing action could provide high-speed control over the inflight allowance, with rates of accuracy lower than +/- 1g from a 100 g ingredient dose.

Repeatable performance

Predictability of the valve closure rate is an important factor for dosing consistency, but it had to be matched with an impermeable barrier. Seepage when the valve is closed also impacts dosing accuracy. However, Bürkert’s ball valves were also specified as they provide optimum sealing, preventing any penetration even against the most aggressive solutions.

A secondary benefit of the valves’ fast closure rates is that if the system experiences a shutdown due to an unexpected power loss, the closure rate is extremely rapid. This secures the media and prevents unwanted excess flow.

Within the bakery, orifice plates have also been installed to restrict flow to specified areas. These restrictors aid control accuracy, stabilising flow and reducing variation. Combined with the new valves, hammer effect has also been removed, contributing to a reliable and robust installation.

Crucially for the bakery, high accuracy valve control has not only decreased the cost of production, but product quality has also been optimised. This has increased value for supermarkets and retailers, and ultimately, has improved satisfaction for consumers.

Kieran Bennett is industry account manager, food and beverage at Bürkert
