KELLER LEO digital pressure gauges
30 August 2018

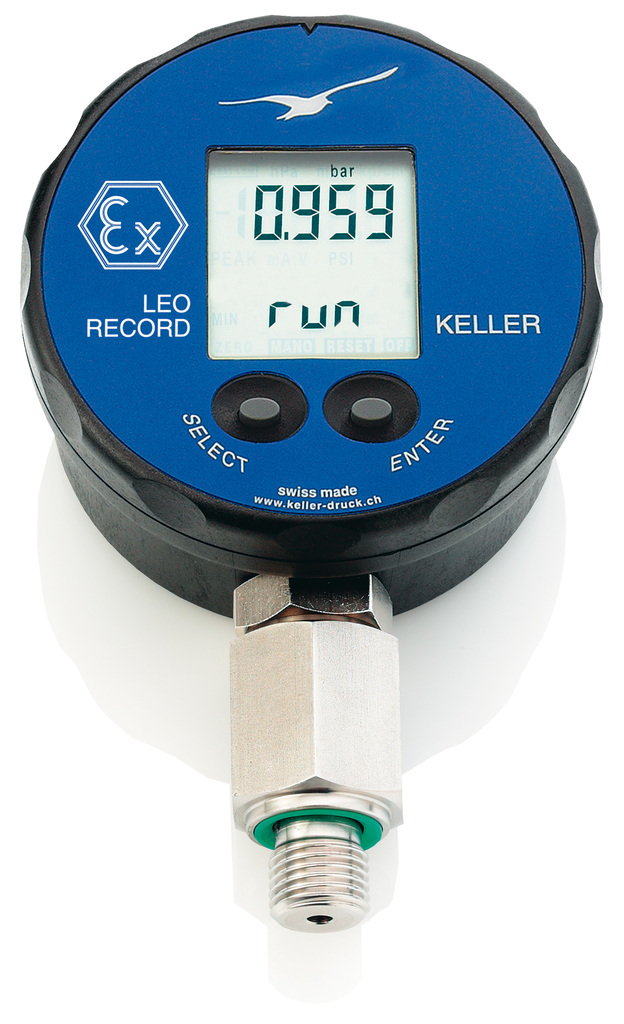

The KELLER LEO Record and LEO Record Ei, are digital pressure gauges equipped with an integrated data memory to record pressure and temperature over user defined periods.

The LEO Record, memory can store up to 57,000 pressure readings, or 28,000 readings of pressure and temperature. Accuracy is 0.1% of full scale for pressure, and ±1°C for temperature. Battery power will last for up to 2 years when set at 1 recording every 10 seconds. Standard thread connection G1/4 male.
Download results to PC using KELLER Logger 5 software (free to download). For PC interface a USB converter cable K-114A is required. Results can be exported to spreadsheets and other file types.
The Leo Record will display numerous common pressure units, bar / psi / mbar / kPa / MPa / mH2O.
The LEO Record Ei is the Intrinsically Safe Version, , 2014/34/EU and IECEx Classification: II 2 G Ex ia IIC T4 Gb, Certifications File:PTB 05 ATEX 2012 X and IECEx PTB 13.0028X LEO Record Ei has the same technical specification and operating features as the standard version, with added protection of ATEX approval. Data download must be done in a safe area.
