Flexible tilt measurement

02 June 2014

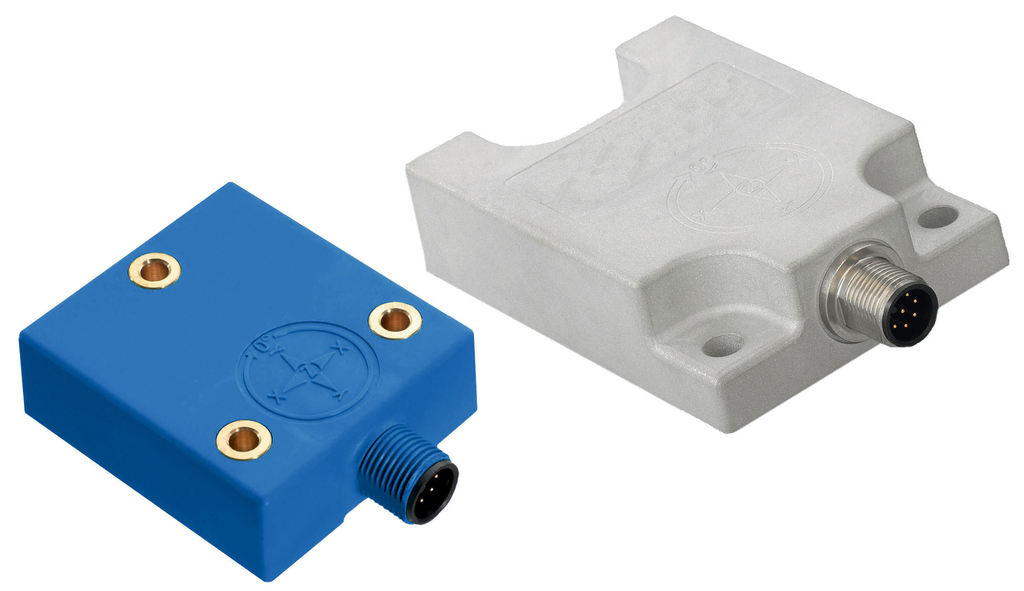

Providing high resolution (0.01º) and high accuracy (0.1º) measurement of inclination (pitch and roll) or rotation movement with a dual axis range of +/-60º or an optional single axis measurement range of 360º, BEI Sensors’ new T-series industrial duty inclinometer from BEI Sensors is now available from Variohm EuroSensor.

For maximum application flexibility the unit can be supplied with optional 4-20mA or 0.5 – 4.5V analog outputs with a CANopen version also available.

The fully encapsulated sensor is supplied in a choice of glass fibre reinforced plastic or aluminium housing for maximum durability. Its IP68 rating can be extended to IP69K with an optional sealed 5-pin M12A mating connector. A cabled version with connector is also available.
