Modular energy measurement system
21 October 2014

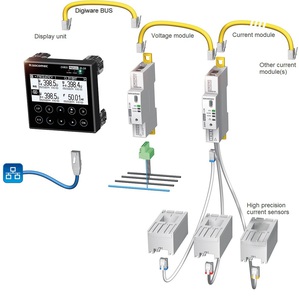

New from Socomec, DIRIS Digiware is a totally modular and flexible energy measurement and monitoring system. A simple solution for building a modular measurement system, the system comprises a minimum a display unit, a voltage measurement module, multiple current measurement modules and current sensors.

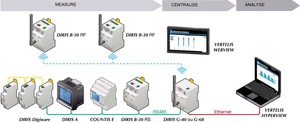

The DIRIS Digiware modular system is based on a centralised display and a single voltage measuring point for the entire system. DIRIS Digiware offers an effective function-sharing capability. It also includes current measurement modules that are interconnected via the Digiware bus (RJ45 cables) for measuring energy consumption at the closest point to the actual loads.
Each module can monitor one or more circuits via the current sensors by means of independent current inputs (3, 4 or 6 depending on the modules). With 3 inputs, a current module can monitor a three-phase circuit or 3 single-phase circuits.
 |
 |
