Modular adapter system
15 October 2019
The new IMAS-CONNECT adapter system by icotek is a modular designed grommet system for mounting metric connectors, keystone couplers, hose fittings, pressure compensation elements and much more.

By using the modular adapter system, the cable entry becomes a hybrid system. Pre-terminated and standard cables or hoses can be routed and, with the use of the IMAS-CONNECT grommets, you can now integrate various types of connectivity ports into the frame system. Additional knock-outs are no longer required.

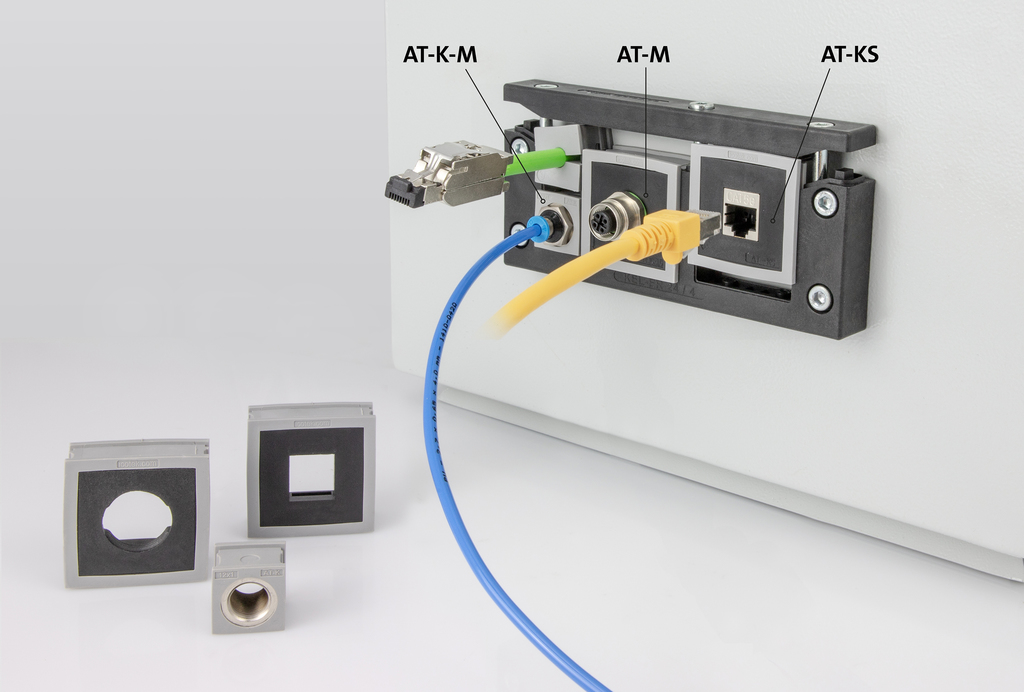

The elastomer-made grommets of the adapter system with a body made of polyamide or nickel-plated brass, fit perfectly into existing icotek cable entry frames, such as KEL-U, KEL-ER, KEL-FG and meet IP54 or IP65 protection levels. The available metric threads of the AT-KM series are M5 x 0.5, M8 x 1.0, M12 x 1.0, M12 x 1.5. The AT-M is M12x 1.0, M16 x 1.5, M20 x 1.5 or M25 x 1.5. The AT-KS grommet is suitable for all popular Keystone modules, such as USB, RJ45, HDMI and about 70 other Keystone modules.
https://www.icotek.com/en-uk/product-catalogue/imas-connect/
