Grommet with staged membrane rings
10 February 2020

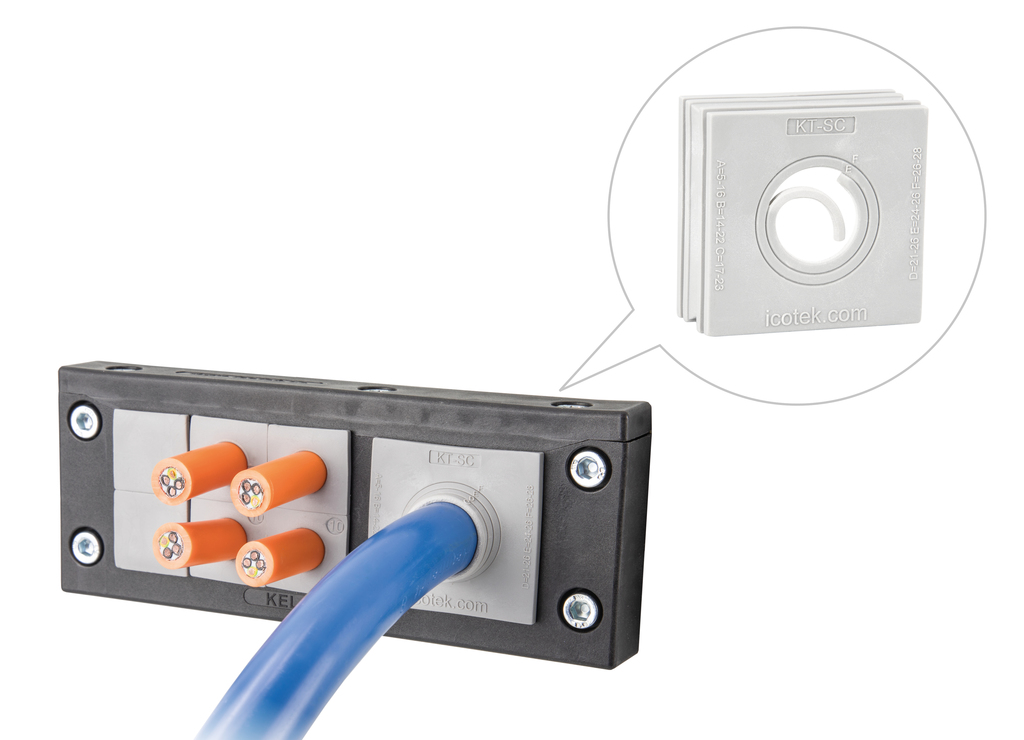

icotek’s new cable grommet KT-SC with peelable membrane rings has removable rings with graduated sealing areas.

The new grommet KT-SC is based on company's KT large size grommet. It enables the routing and sealing of cables and hoses with diameters from 5 to 28mm.
The single membrane rings can be peeled away according to the diameter of the routed cable or hose. All you have to do is pierce a small hole between the rings. Afterwards the corresponding ring can be removed. The rings are marked with the letters A to F. This marking shows the corresponding diameter of the inserted cable.
The KT-SC can be integrated into all divisible cable entry frames (KEL, KEL-U, KEL-ER, KVT and KEL-FG) which accommodate large KT cable grommets. The KT-SC is made of elastomer, achieves IP54 class and is suitable for a temperature range between - 40 to +100°C. The cable grommet is halogen and silicone free.
Free samples and further information are available directly from the manufacturer.
https://www.icotek.com/en-uk/product-catalogue/cable-entry-systems/cable-grommets/kt-sc/
