Customisable drives for precision applications

In particular, SolutionKit will alleviate the burden on military, aerospace and defence applications, which often demand that components perform in temperatures from -50 to 120 degrees Celsius in high and low humidity environments. Similarly, the high salinity of marine and offshore applications can cause corrosion on metallic surfaces as well as water ingress, which can lead to drive failure from prolonged submersion.

Designed to overcome these problems, SolutionKit allows users to specify custom gears, motors, encoder feedback systems, output bearings, sensors, windings, protective coatings and ingress protection ratings up to IP68.

"Traditionally, every time a product is redeveloped or redesigned to customise it for a given application it needs to undergo revalidation and retesting to ensure it is safe and fit for purpose," explains Graham Mackrell, managing director of Harmonic Drive UK. This means original equipment manufacturers (OEMs) can incur higher costs. It is for this reason we have made SolutionKit; a completely modular system that uses preapproved components, which have already been tested.

"For example, mains power varies from 240V in public low voltage networks, 300-560V in high voltage industrial networks and 12V, 24V and 48V in vehicle batteries. To provide the required motor torque constant in these varying applications, we need to customise the windings specification to suit.

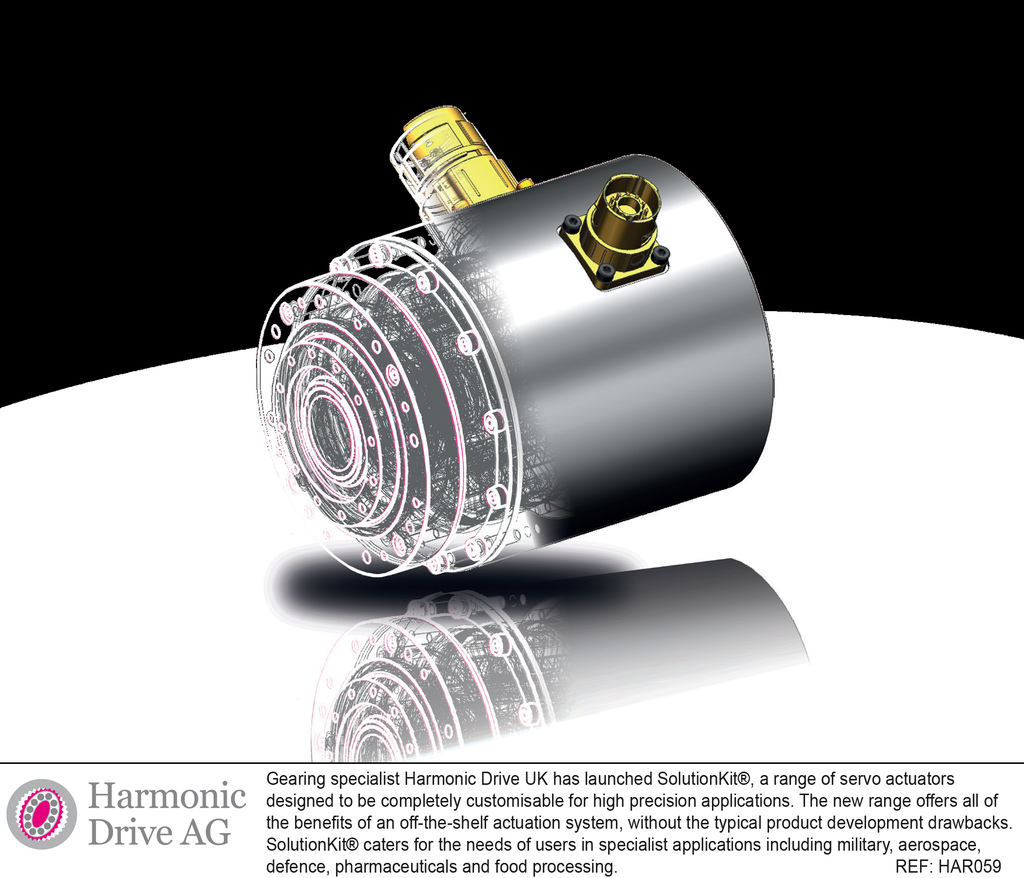

"In this scenario we used SolutionKit to take our standard AlopexDrive and customise it for military vehicle use in harsh desert environments. Here, protective coatings, ingress protection and vibration resistance, as well as a hollow shaft to allow services to pass through, are vital to the sustainable operation of the entire system."

In addition to its modular customisability, SolutionKit offers compatibility with nearly all proprietary encoder technologies being used by customers already. Technologies such as Sick's HIPERFACE, Siemen's DRIVE-CLiQ and Heidenhain's EnDat can all be specified with SolutionKit.
