eloProg from elobau

eloProg is a modular safety control system from elobau.  The eloProg system is flexible and cost effective for every application, large or small. Configuration is via simple, intuitive, easy to operate software.  It is easily integrated into existing safety concepts.

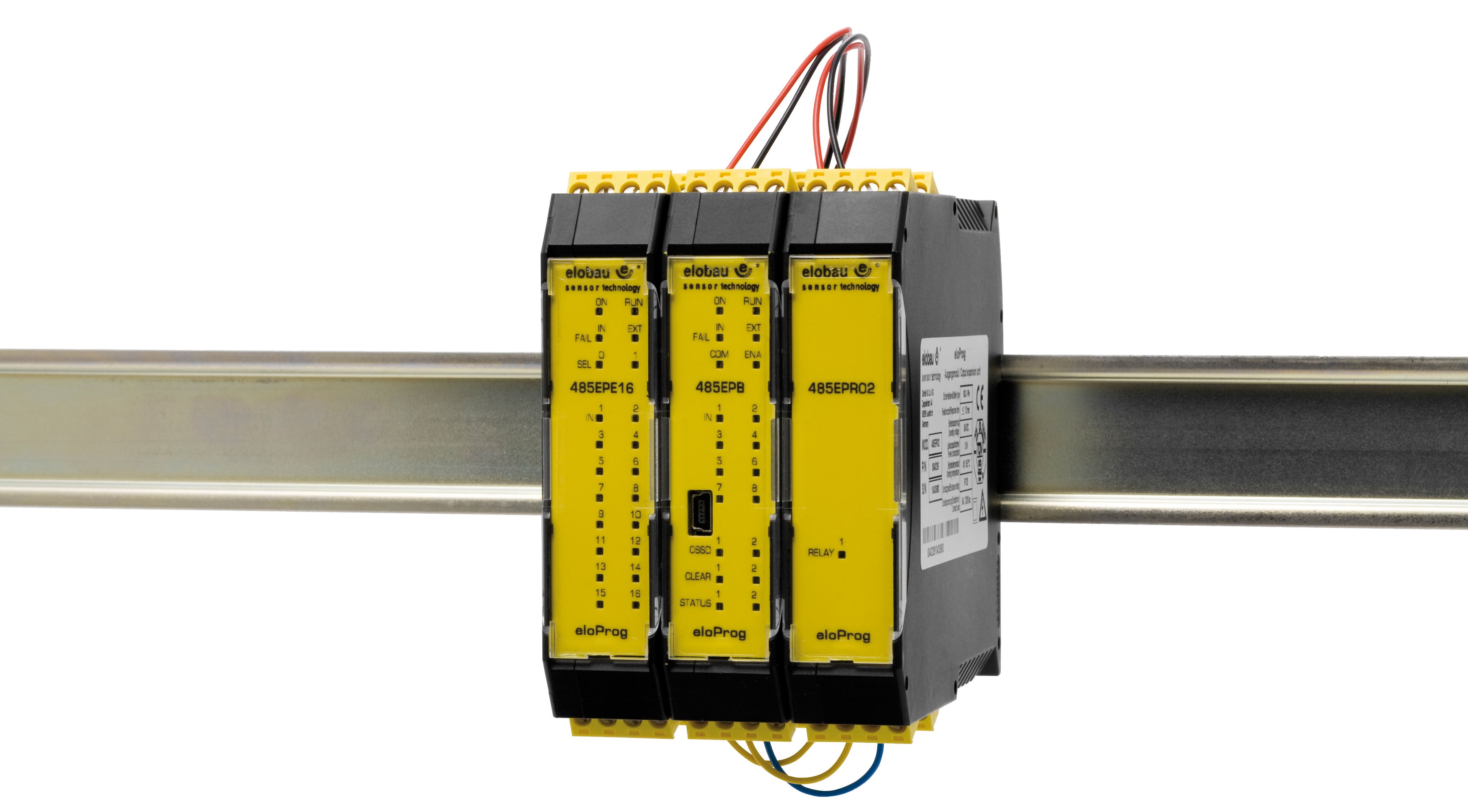

The eloProg base module is a standalone safety controller with built in I/O which can be used as an individual device, and also allows further expansion with additional local or remote I/O modules. There are various advantages with this approach, particularly with modular machine systems. There are a number of eloProg I/O module configurations which allows the designer to optimise the use of I/O allocation. The configuration software is free of charge with the base unit.

Features and benefits of the system are:

• Base unit has I/O functionality.
• Up to 14 additional eloProg I/O modules providing up to 128 safe inputs.
• Up to 6 bus transfer modules for the decentralized positioning of I/O modules.
• Up to 250 metres of bus cable length.
• Module to module local bus communication.
• Cost effective wiring due to a local bus transfer communication.
• All popular fieldbus protocols are available for diagnostic and operational integration.
• USB programming port on the base module.
• On-board memory card allows data transfer without the use of a PC.

eloProg specifications

eloProg safety controllers operate from 24V DC and have a maximum switching voltage of 250V AC or 30V DC, with a maximum switching current of 6A. The base unit comes with 8 safe inputs, 2 safe outputs, 4 test outputs, 2 control outputs and 2 EDM inputs. The eloProg base module, and expansion modules, can be used with a variety of I/O devices, e.g. emergency stop switches, safety sensors, guard switches, safety light curtains, laser scanners and two-hand controls.

eloProg is safety rated to SIL 3, PL e and safety category 4, and is UL approved.
