Reflow capable connectors

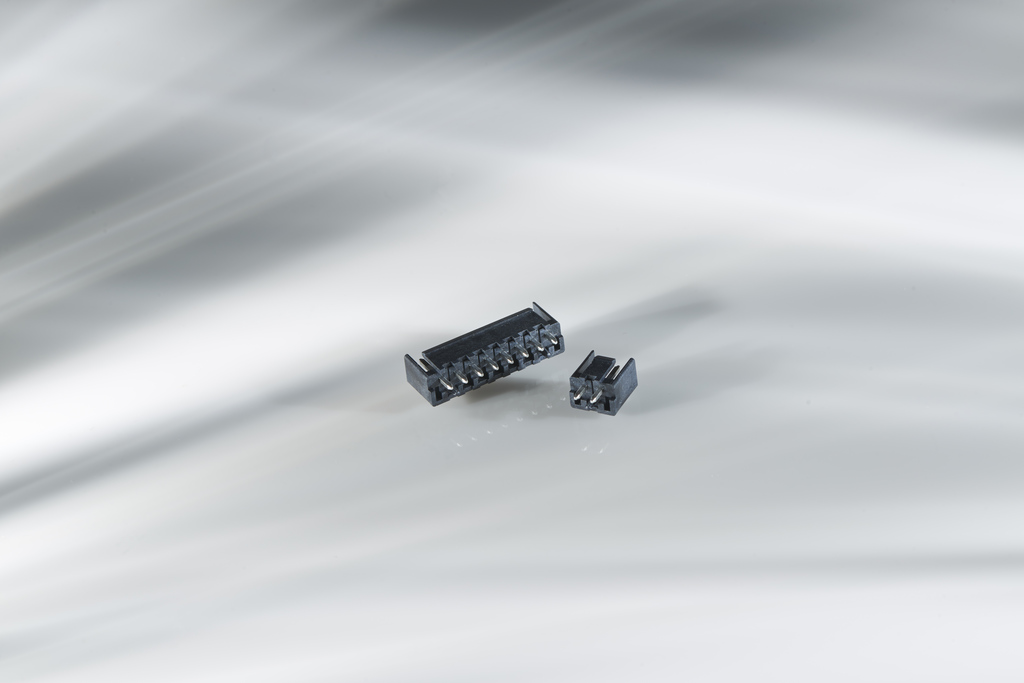

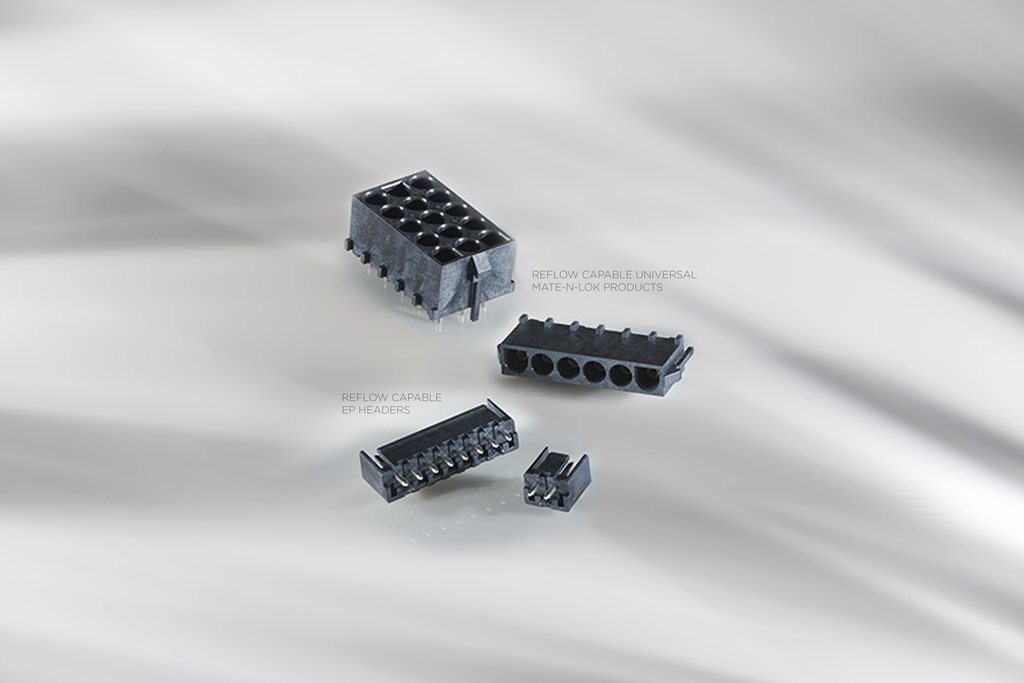

The reflow capable universal MATE-N-LOK connectors and Economy Power headers are both rectangular wire-to-board power connectors built on a tested solution where the thermoplastic housings are designed to withstand high temperatures associated with reflow soldering. Both connectors are suitable for a wide range of applications including appliances, HVAC equipment, security systems, power supplies, industrial machinery, elevators and escalators.

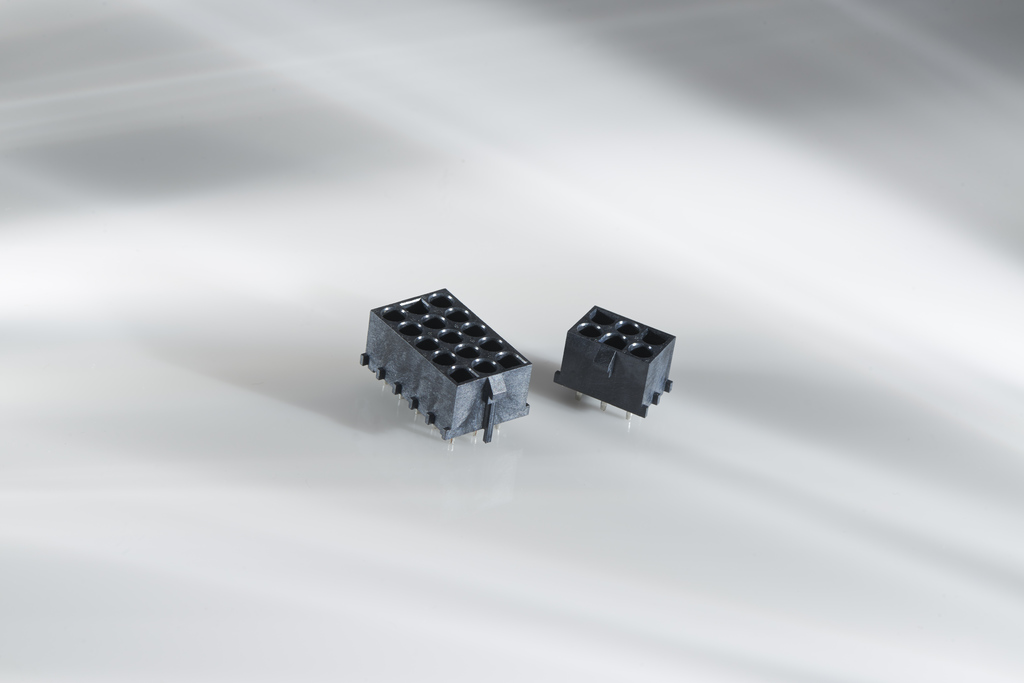

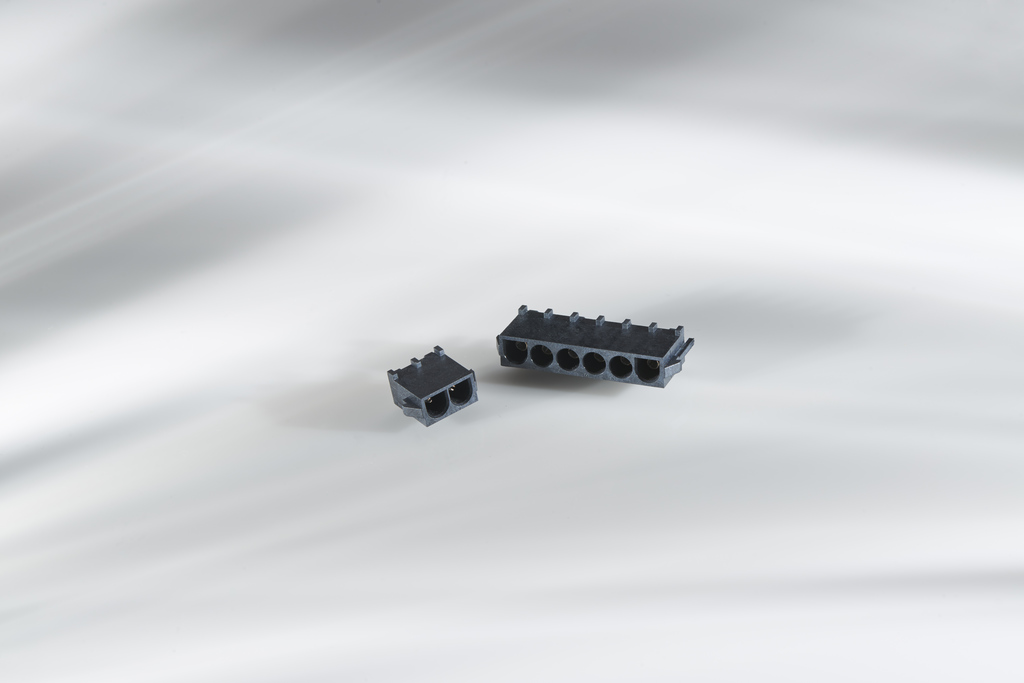

These new headers in the MATE-N-LOK product family are designed with polarisation features and a low contact mating force allowing for easy connections. With a standard 0.250-inch (6.35 mm) centerline, the headers mate with TE’s existing universal MATE-N-LOK connectors.

The connectors are designed for circuits rated 12A / 600VAC and can withstand temperatures between minus 40 degrees to 105˚C. They are available with two to six positions in a single row and three to five positions in three rows. Users can opt for pin and socket style contacts, and product housings in black or white. The new product line conforms to UL 1977.
