Customised wiring harnesses

To help ensure the extreme levels of electrical safety and performance required for these high power systems which typical run from very high current three-phase supplies, Force Engineering embeds temperature controls in its LIM winding assemblies and has chosen Variohm EuroSensor as its main supplier of customised wiring harnesses that include glass encapsulated NTC thermistors configured as temperature probe assemblies.

The special temperature probes are similar to standard components available as stock items from Variohm EuroSensor, however with 10K3976 series thermistors which offer a higher temperature range and stability specification than the standard probe. With the NTC chip encapsulated in hermetically sealed glass packages, these thermistors - which are supplied to Variohm from TE Connectivity - are in turn encapsulated and fully sealed in copper tube housings by Variohm EuroSensor at its Towcester manufacturing facility.

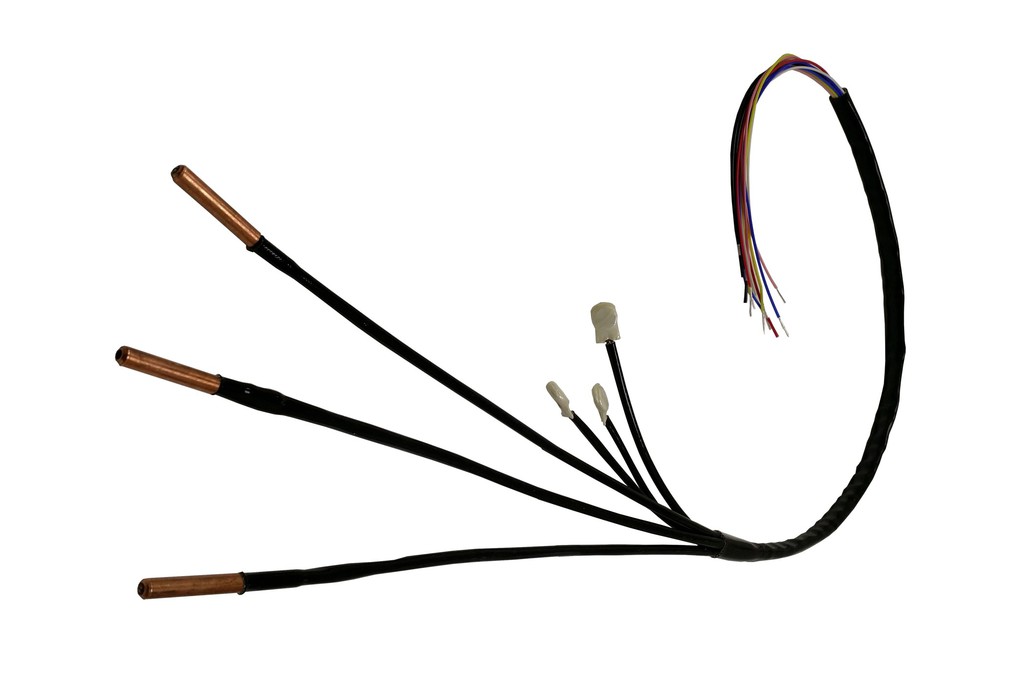

The 10K3976 glass thermistor has a temperature range of -40 to +250˚C and is specified in applications where a fast time response is required at high levels of thermal shock. Three special probes are each wired with different length lead wires and coloured insulated, all finished with rubber shrink-sleeving. Additional cabling, without thermistors, is also included in the harness to facilitate straightforward assembly into the LIMs manufactured by Force Engineering.

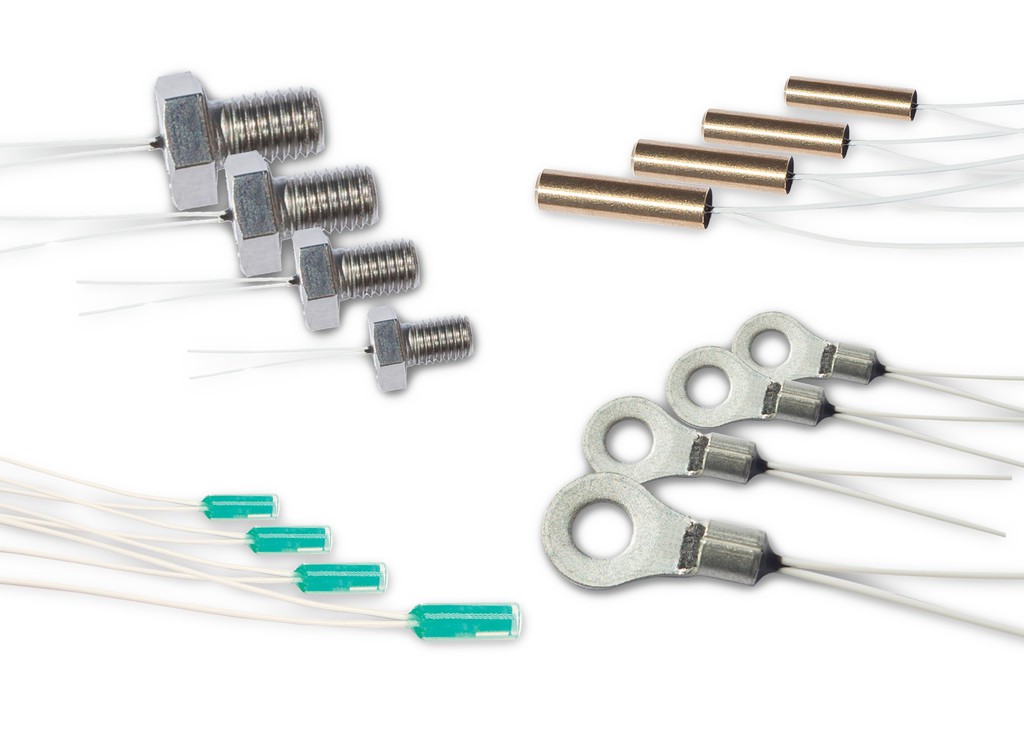

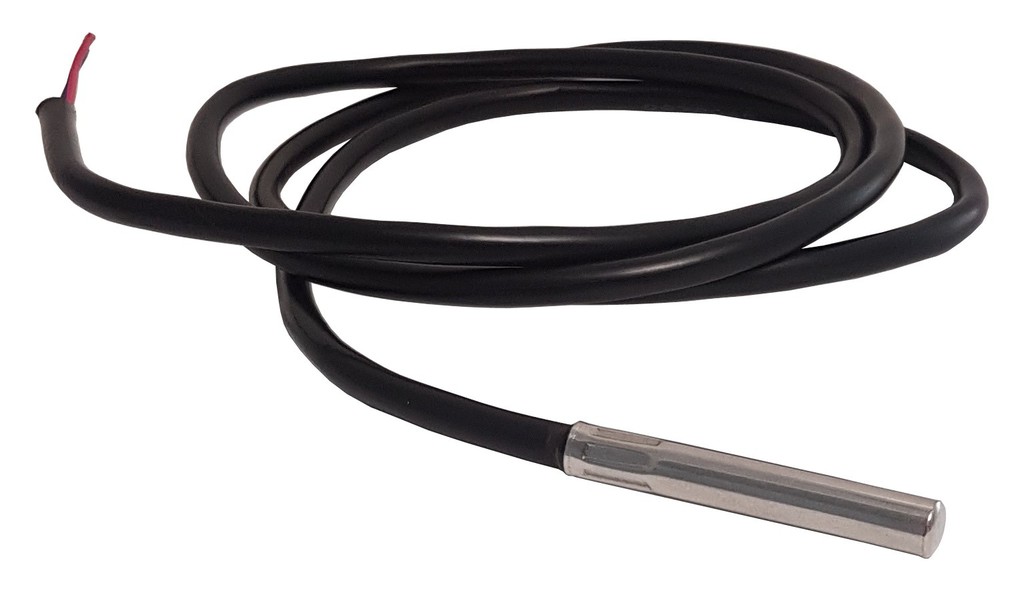

Whilst Variohm stocks and supplies a comprehensive range of glass or epoxy coated thermistors with NTCand PT sensors as components, the specialist sensor manufacturer has developed many standard products like the probes for Force Engineering as convenient assemblies that may be integrated directly into the customer’s application. These assemblies take the form of electrical ring terminals, hexagonal bolts andpipe clamps as well as cylindrical probes finished in PTFE, stainless steel, brass and other materials. These assemblies for instance help power amplifier manufacturers directly sense chassis or heat sink temperature through ring terminal probes. In this way the customer can overcome the potential problems of handling andinstalling tiny NTC or PT type temperature sensor, reduces components and suppliers from more streamlined production and reduces maintenance.

In addition to specialist temperature probe assemblies, Variohm also includes customised production by transforming other components from its wide range of sensors for linear and rotary position, pressure,load/force, and vibration etc. Modifications can range from alternative electrical connection or a modified mounting arrangement to integrating sensors with significant redesigns or combining multiple sensor technologies and other electromechanical components as fully tested sub-assemblies.
