IP69K Ingress Protection achieved

15 October 2019

Distributed by Switchtec, Sirena’s M-Line range of beacons and sounders has been updated to offer IP69K Ingress Protection, expanding potential uses and furthering honing the units to specific tasks and applications.

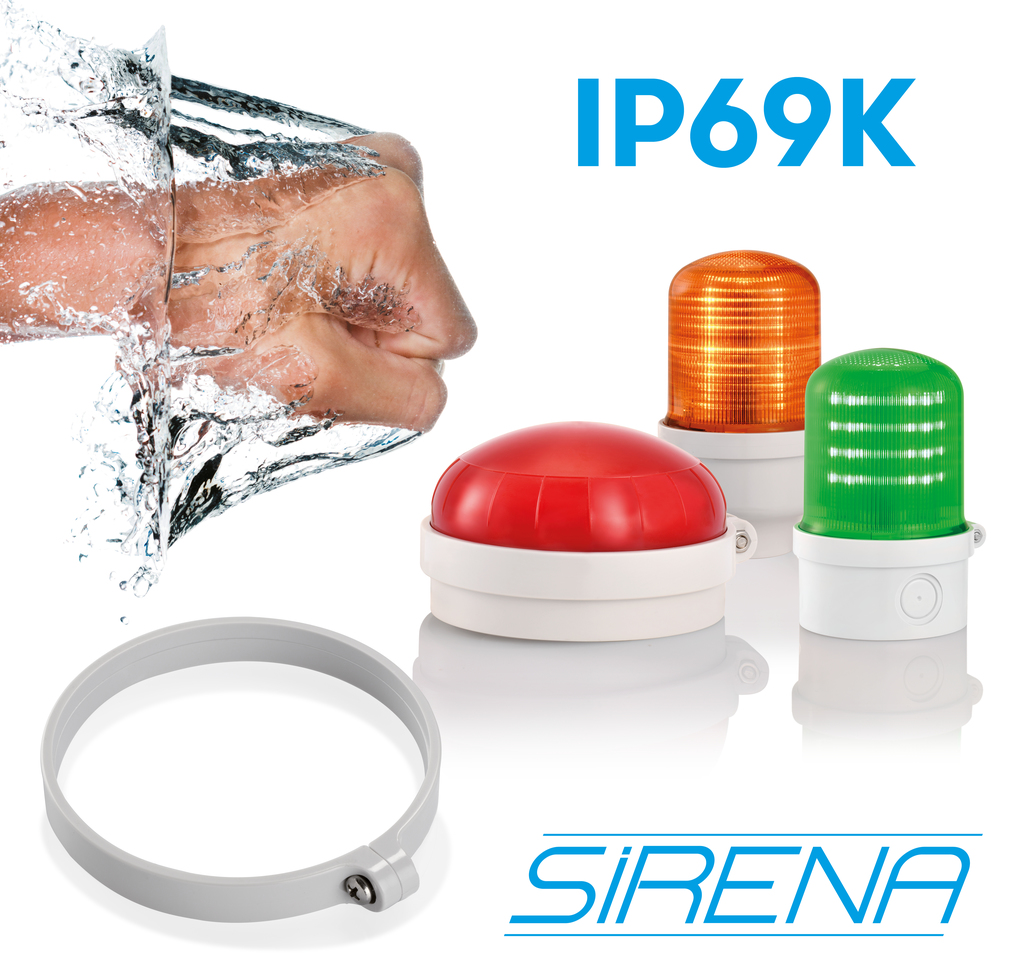

A simple design solution designed by Sirena, a retrofittable Collar, fits around the existing product upgrading beacons from IP66 to IP69K. This accessory suitable for the Sirena FLR, SLR & XLF beacons provides a very high protection against dust and high pressured and elevated temperatures of water, ideal solutions for the food and pharmaceutical industries.

The M-Line concept, simple yet effective, is comprised of 4 modular domes and 6 modular bases, providing a customer fit perfect product for each and every signalling application. The ranges unique modular concept allows each of the 4 domes to be mounted on any of the 6 bases, drastically reducing the number of parts stocked and allowing a much more reactive response to market needs.

The M-Line’s 4 multifunctional domes, utilising the latest LED Technology, provide a high level of optical performance. The range consists of the FLR Beacon which can provide Flashing, Rotating & Steady outputs. SLR & XLF Beacons offer a strobe effect, Flashing & Steady outputs. Lastly the SIR-E Sounder / Sounder Beacon provides a powerful sound output up to 115dB and a choice of 32 tones with 2 separate selectable outputs available at any one time. The combined SIR-E Sounder Beacon provides a combined high-level alarm and multifunction LED output which can offer 32 Selectable tones with a Steady or Flashing output.

The M-Line’s 4 multifunctional domes are available in Red, Green, Amber, Blue and White. The XLF is also available in RGB multicoloured light output with 8 selectable colours with Flashing, Rotating & Steady outputs.

The 6 M-LINE Bases consist of a Shallow Base, Deep Base, a Double Base, Wall Base, Pole Mounting Base and also a Flush Mounting Base for recessed installations. All bases are available in Grey, Red, Black or White.

The M-Line has an operating temperature range from -30˚C to +50˚C, available in 12/24Vac/dc and 90/240Vac and manufactured from high impact self-extinguishing material. Approvals include UL type 4X, EAC & CE.

Each component of the M-Line range has been engineered with an easy snap-together technology that allows easy and safe installation procedures in the most challenging of environments.
