Performance boosting bearings
17 February 2022
Karl Brundell looks at thin section bearings, the types of applications they are used in, and how to select the most appropriate option for your needs
IT WOULD be difficult to imagine how the modern industrial age would have developed without bearings. Every kind of machine that requires motion makes use of bearings in some way to smooth their path and reduce friction and such an important piece of technology has a long and well documented history. A huge leap forward in the development of bearings was helped by improved metal forming processes at the start of the industrial age which is when Philip Vaughan received a patent for a ball bearing made of steel in 1794, the design of which became the basic blueprint for today’s ball bearing.
Fast forward to now and the ubiquitous ball bearing and bearing assemblies continue to be vital motion control components within a huge range of industrial and manufacturing machines. Today, the rapidly increasing demands of robotics and advanced automation has seen the development of more compact, lightweight thin section bearings and these high precision components have become essential across many industries. For example, aerospace, defence, satellite systems, optical lenses, semi-conductor manufacturing to camera gimbals.
Oxfordshire based precision bearings specialist, Carter Manufacturing, is the European Distributors for Silverthin Precision Thin Section Bearings and offers many years of experience in the application and use of thin section bearings.
Why use a thin section bearing?
Typically, thin section bearings are used in where applications with critical space and weight restrictions mean using standard deep groove ball bearings would not be possible. There are various definitions used to highlight the difference between ‘standard’ section bearings versus thin section, with the most common being when the bore diameter is more than four times greater than the radial cross section.
Whilst cross-sectional size can vary, it is typically two times the ball diameter. Of course one design won’t suit all applications, which is why these types of bearings are generally available in a variety of configurations. These are; radial, angular contact, 4-point contact, full complement, duplex pairs and different cross sections.
Configuration selection
Selecting which type of thin section bearing configuration to use is usually driven by the type and magnitude of loading required in the application. In environments with axial loads present in one direction, Silverthin recommend their A-Type angular contact ball bearing which also works well in radial or combined thrust applications. However, this option on its own is not best suited to applications which require the support of moment loads, or reversing axial loading. Contact bearings, such as Silverthin Type-C bearings are the best choice for these situations as their deep ball grooves have the ability to withstand higher loads. Although this type of bearing is used primarily in applications with radial loads, it can also withstand moderate axial loads, reversing axial loads and also moment loads which Carter is best placed to advise on.
Heavier loads
Where significant moment loads prevail Carter would specify their Silverthin Type-X point, or 4 point contact ball bearing option. This is designed with ‘gothic arch’ raceways to create 4 contact points between the balls and the raceways and is recognised to be excellent for moment loading and also for reversing axial loading. Carter says that whilst the X-Type bearing can also be used for other light loading conditions, it is not recommended to replace the C- or A-Type bearing for pure radial loads.
As a general rule, Silverthin advises that when specifying the X-Type of bearing for axial or moment loads combined with radial loads, the application speed (RPM) needs to be carefully considered. Carter’s engineering department has extensive data available and can supply information on combined load, limiting speeds as well as advising on radial bearing use with combined radial loads, with axial or moment loading and for limiting speeds and separator selection.
When the main application specifics, such as space, load and other operating conditions are determined, it’s then time to consider the type of thin section bearing to use. Thin section bearings are often used where wiring or tubing passes through the bore in a hollow shaft, such as a slip ring, or in wire forming machinery.
They are also used in mechanisms such as Gimbal platforms within optical and targeting systems on ships, aircraft and also in radar and satellite communications equipment on land, sea and air-based.
Other applications
They are ideal for achieving smooth action in articulating parts such as in the elbows of robotic arms, or other articulating joints and can also be used in all types of work holding devices such as turntables, indexing and rotary tables.
Carter can provide application advice on all aspects of their Silverthin thin section bearings so are well placed to deal with design challenges where space is at a premium and repeatability, combined with absolute accuracy and longevity is vital over prolonged periods of time.

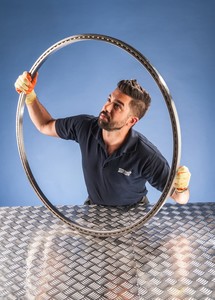

The precision thin section bearings they offer are in sizes from 1” ID (Internal diameter) specified for uses that are as light as miniature gimbal mounts on satellites, up to 40” OD (Outer Diameter) for large rotary tables for both commercial and military applications.
Karl Brundell is managing director at Carter Manufacturing
https://www.carterbearings.co.uk/
Key Points
- Increasing demands of robotics and advanced automation has seen the development of more compact, lightweight thin section bearings
- Selecting which type of thin section bearing configuration to use is usually driven by the type and magnitude of loading required
- Thin section bearings are often used where wiring or tubing passes through the bore in a hollow shaft, such as a slip ring
