Intelligent drive tailored for conveyors
12 December 2016

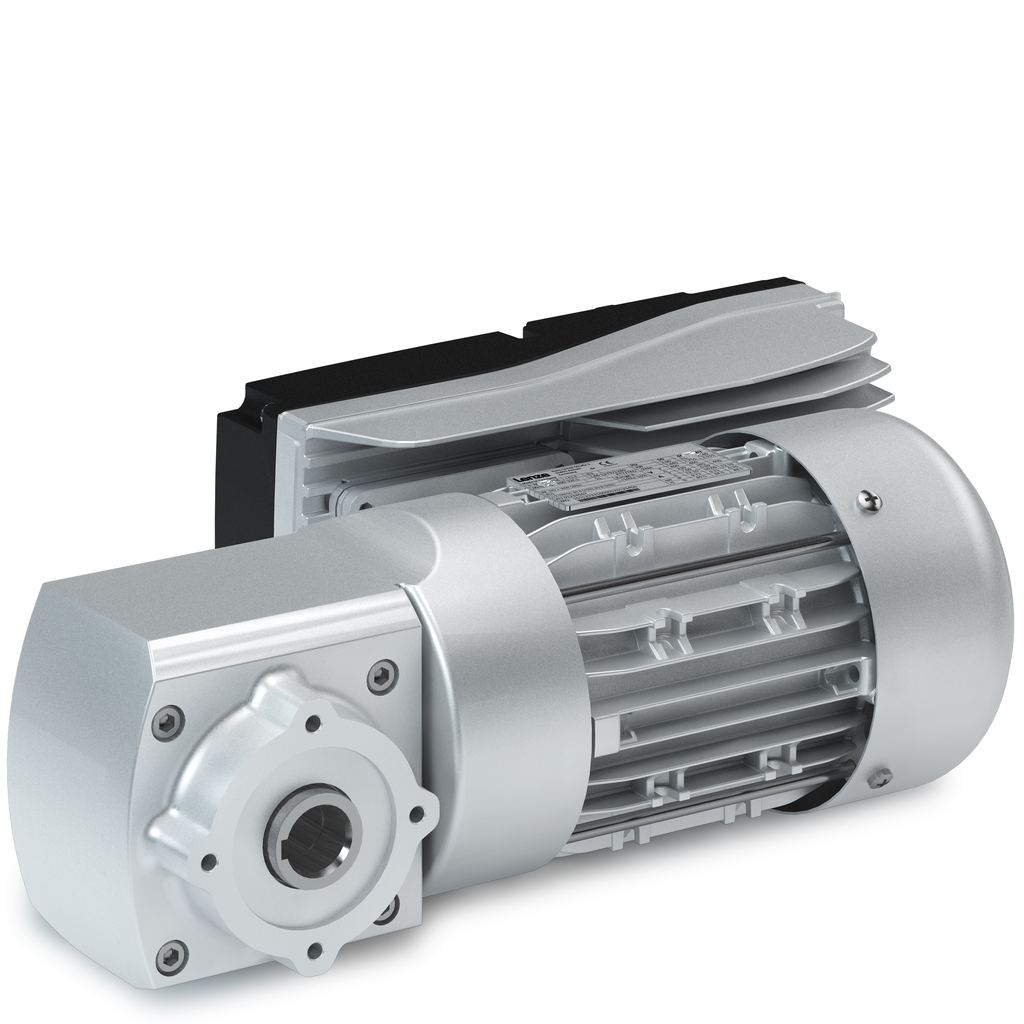

The Lenze m350 is a new compact mechatronic drive package designed specifically for carton and tote conveyor systems.
Described as “technically the best solution for horizontal material handling systems", the m350 provides compact dimensions with standard mountings, high efficiency, ready availability and true value for money. Cost-savings result from simple wiring, smaller panel sizes and a zero maintenance requirement.
The m350 is a genuine integrated mechatronic solution consisting of a gearbox, motor, electronic drive and software. The gearbox is integrated into the motor giving smooth lines and highly compact dimensions. The situation is similar for the drive electronics and software, with which up to 5 motor speeds can be easily and precisely set with a user-friendly smartphone app and NFC contactless connection. Thus speeds of 42 to 216 r/min can be freely selected at the gearbox output, all with the same rated torque plus a 400% starting torque – thus considerably simplifying engineering design and development. The Lenze Smart Motor electronics are simply controlled with three digital inputs.
The m350 is available in three sizes with output torques of 25, 50 and 75 Nm suiting conveyor loads up to 350kg. With just two levels, standard and with a holding brake, six versions cover a wide solution spectrum in horizontal material handling. The standardisation allows fast delivery from pre-built stock, even with add-on options of torque arms, male output shafts and flanges. Mounting dimensions match the standards in the market.
The new m350 mechatronic drive package is more energy-efficient than all other drives used today in horizontal material handling, reducing running costs. In addition, integrated soft start/stop ramps and brake control ensure that conveyed goods are transported smoothly and gently without jerks. In general terms, the m350 is a universal standard solution for worldwide implementation as no country-specific adaption is needed for mains voltages. Power cabling is faster and less costly as unshielded mains can be daisy-chained from one unit to the next, without individual connection to starters and fuses in the panel.
