Anybus gateways for PROFINET IRT v2.3

01 March 2017

HMS Industrial Networks has released new versions of its widely-used Anybus gateways for PROFINET IRT, allowing machine builders and system integrators to connect any industrial device, machine or network to PROFINET IRT and comply with all the latest requirements of PROFINET specification v2.3 and onwards.

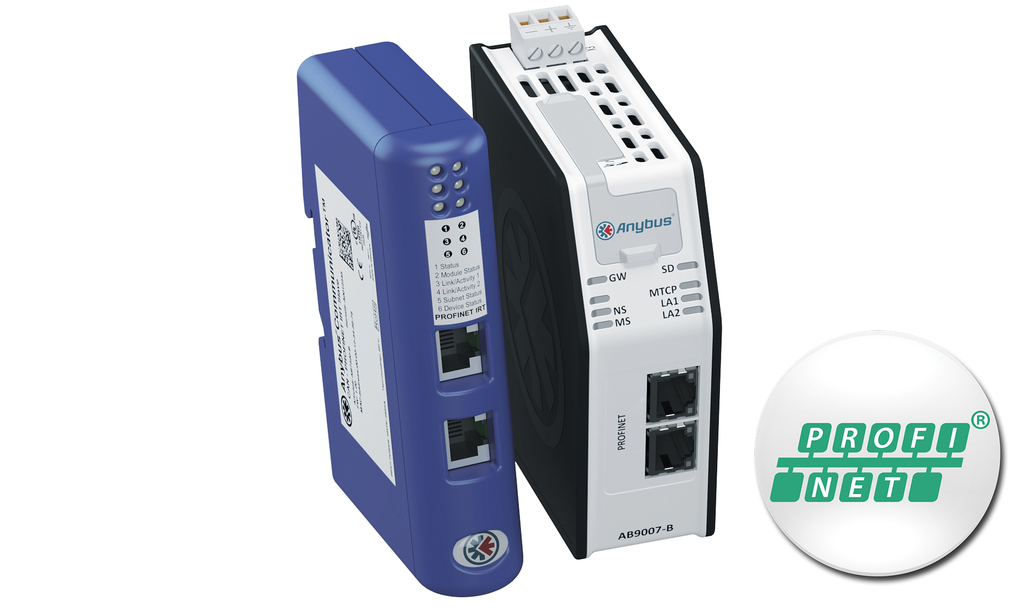

Anybus gateways enable communication between machines and industrial networks, especially focusing on fieldbuses and industrial Ethernet. Anybus X-gateways connect any two industrial networks while Anybus Communicators connect non-networked devices via a serial line (RS232/422/485) or a CAN interface to all major fieldbus and industrial Ethernet networks.

All Anybus X-gateways for PROFINET IRT are now upgraded to be conform to the PROFINET v2.3 specification, allowing up-to-date and conform connectivity between PROFINET IRT and a vast number of different industrial networks such as EtherNet/IP, EtherCAT, Modbus-TCP and PROFIBUS.

HMS can now also offer Anybus Communicators for PROFINET IRT allowing any serial (RS232/422/485) or CAN-based device to communicate on PROFINET IRT v2.3. All gateways are conformance tested for network compliance.

“The new PROFINET IRT v2.3 standard sets high demands when it comes to PROFINET network performance,” comments Markus Bladh, Product Manager at HMS. “Since we always aim to be compatible with the latest network standards, we have implemented our award-winning network processor Anybus NP40 in the new gateways to handle the demands of PROFINET standard v2.3. This means that users can comply with the demands of the AIDA-group (the German Automobile Manufacturers) and deliver automation equipment that is up to their standards, simply by connecting an Anybus gateway.”

All new versions support PROFINET RT Class 1 and 3 and come with a PROFINET IRT Ethernet cut-through switch implemented in the module’s processor – ideal when true low microsecond latency is needed. The gateways are conformance-tested to support Class A, B and C. PROFINET IRT Device/Slave settings can be made either via the built-in web interface, or by importing the provided .GSDML file into engineering tool of the controlling PLC.
