M12 connectors for Industrial Ethernet

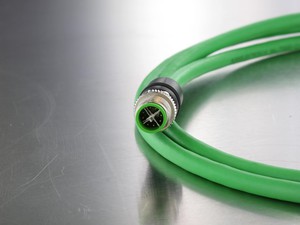

Murrelektronik's X-coded M12 cordsets are the right solution for error-free, high speed data transfers of up to 10 gigabits per second. They enable full speed transfer on the data highway. A metal cross (X-shaped) in the connector, safely separates the four data pairs from each other. The cables are also shielded from external interference.

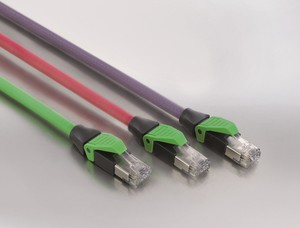

Combining RJ45 connections in the office and X-coded M12 connections in the field makes it possible to establish a consistent gigabit communication.

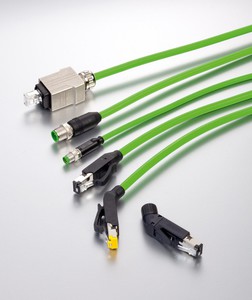

Murrelektronik offers the x-coded M12 connectors together with highly-resistant PUR cables - they are perfect for applications in industrial environments.

1. 10 Gbit/s data transfer rate according to Cat. 6A (ISO/IEC 11801)
2. M12 x-coded (IEC 61076-2-109)
3. 360° shielded
4. Soldered shield connection between cable and connector
5. Suitable for applications in industrial environments up to IP65/67

Hybrid Cables - Parallel Transfer of Data and Power

Murrelektronik's Y-coded M12 cordsets can transfer data and power in one connector. The metal y-coding separates the four contacts for power transfer from the four signal contacts in the pin arrangement. This makes it possible to transfer up to 100 mbit/s data while 2 x 6 A power are available.

Y-coded M12 cordsets make installations easier which helps you reduce costs. Y-coded M12 connectors combined with PUR cables suitable for C-tracks are great for moving applications.

• Data transfer according to Cat. 5e (ISO/IEC 11801, Class D)
• Power transfer up to 2 x 6 A
• 360° shielded
• Soldered shield connection between cable and connector
• Suitable for applications in industrial environments up to IP65/67
