Space saving devices

Omron unified the design of its FA devices to save space and enable smaller-sized control panels. The space-saving FA devices enable panel builders to include more components in the panel and increase its control functionality.

The standardised, smaller size of these components, enables easier and faster control panel customisation. Furthermore, the Common Design Platform includes Omron’s proprietary “Push-In Plus” wiring technology, which combines faster wiring with a reliable connection and outstanding vibration resistance.Previous FA devices built on the Common Design Platform have been adopted on the front line of manufacturing by more than 7,000 global companies.

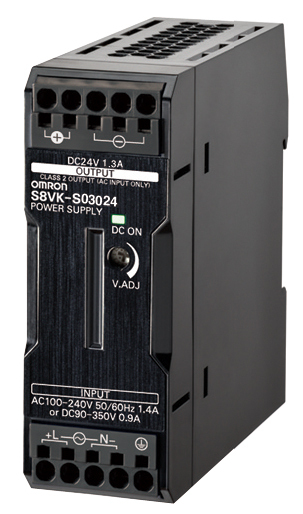

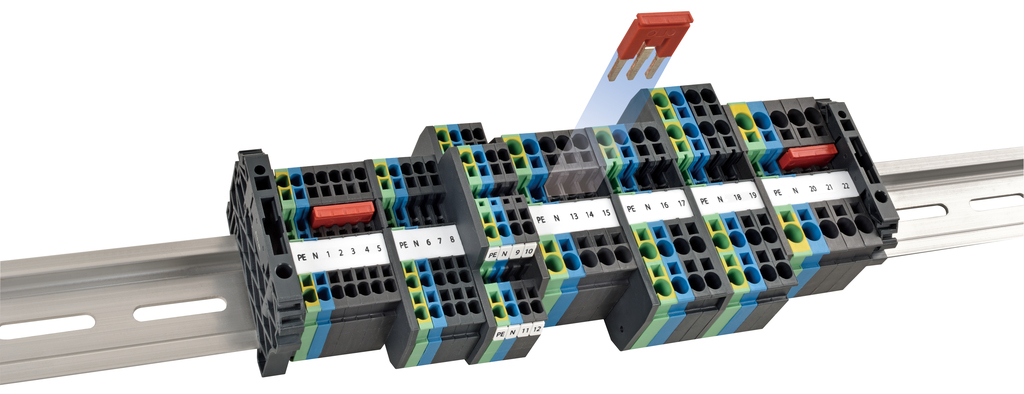

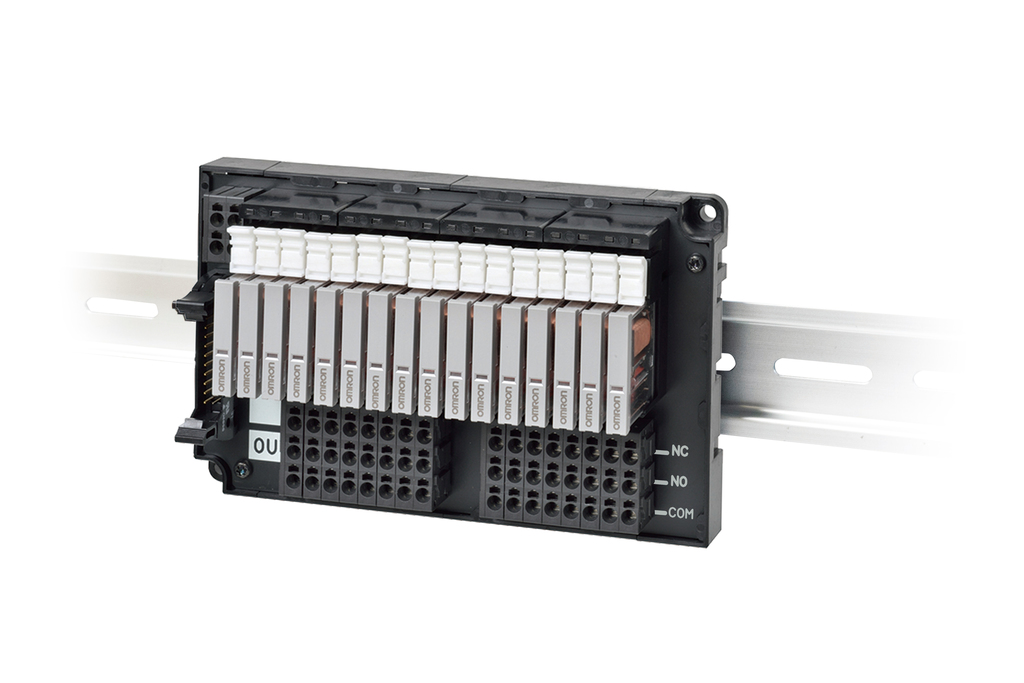

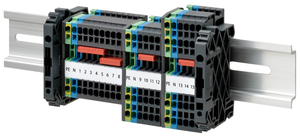

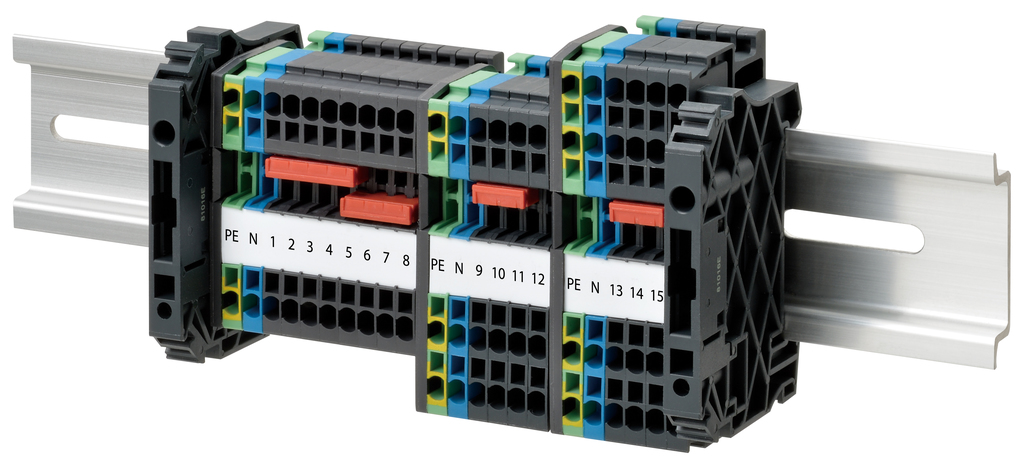

Omron has applied the Common Design Platform, which saves space and enables faster wiring to the expanded range of XW5T terminal blocks, the G70V I/O relay terminals, and the 30W models of S8VK-S switch mode power supplies, completing the existing line-up of 60,120,240 and 480W models, for wider application.

The expansion of the FA devices built on the unified design platform will have a great combined effect achieved by providing a wide variety of devices. Omron aims at innovating control panels of customers. Since the component height varies, depending on factors such as power & heat dissipation, the in-panel products are categorised into three main groups with their own specific placement (row) in a control panel: I/O, Control, and Power. Within each category optimised design rules ensure that dead space is reduced and the width between wiring ducts is optimised.
