Flat, compact design
22 September 2016

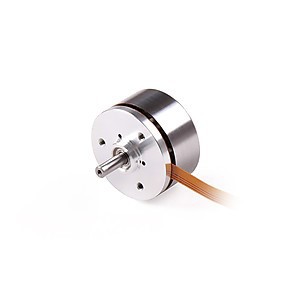

Available from Delta Line, new BLDC flat motors from Fulling are said to be an ideal solution for many applications thanks to their compact, flat design (32mm diameter, length <18 mm).

In the new 32BLW motors (8 poles design), the permanent magnets are located on the external rotor which rotate around the internal stator with the windings. In addition to the shorter design, the advantage of this construction compared to internal rotor motors comes from having the same output with lower torque ripple due to the rotor‘s higher moment of inertia. The motors can be produced according to customer-specific requirements for voltages from 12-24V and a power of 7W, with and without hall sensors.
Typical application varies from pumps, respiratory care devices, robots, bar code scanner. You can see the motors at the following events:
Electronica, 8th-11th November, Munich, Stand B1.235
COMPAMED, 14th-17th November, Dusseldorf, Stand 8aM13
SPS, 22th-24th November, Nuremberg, Stand 1-540
