Dedicated Mini-EtherCAT master
03 December 2013

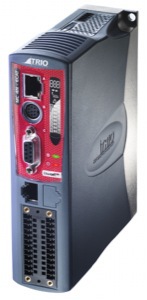

Trio Motion’s MC4N-Mini EtherCAT master is a new concept for its high performance Motion Coordinator series motion and machine controllers.

The EtherCAT dedicated controller can handle up to 32 axes of servo or stepper drives and 1024 machine I/O points. A built-in expandable library of the market leading EtherCAT digital drives and I/O modules allow systems to be automatically detected and configured in a plug and play way that is not usually available for this open and increasingly popular protocol.
Featuring an updated configuration of the 532MHz ARM 11 processor, the ultra-fast MC4N-ECAT includes 64-bit integer position registers for extremely high resolution and precision accuracy - making it ideal for high axis count tightly coordinated machines or robotic applications.
Like all Trio Motion Coordinators, the new MC4N-ECAT supports multi-axis motion control through linear, circular, helical or spherical interpolation in addition to electronic cams, linked axes, line shaft, gearing functions and more.
