Automated biomass cultivation

10 July 2022

A star of the show at this year's Hannover Fair and a great example of how the company's technology can be used for better environmental outcomes, Festo's PhotoBionicCell bioreactor enables the efficient and large-scale photosynthesis of algae

ALGAE ARE small climate savers – even in their natural state they are extremely efficient photosynthesisers and absorb ten times more carbon dioxide (CO₂) than land plants. In bioreactors equipped with appropriate sensors, control technology and automation, the efficiency of algae can be increased to a hundred times that of land plants. As such they offer significant potential in a climate-neutral circular economy.

With the consequences of climate change already being felt, Festo considers the bioeconomy the economic system of the future. “Our aim is to make a significant contribution to improving the quality of life of today's and future generations by the large-scale cultivation of biomass using our automatic technology,” says Dr Elias Knubben, vice president corporate research and innovation.

Biology as inspiration

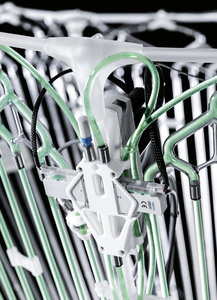

At Hannover Messe 2022, Festo presented the PhotoBionicCell project as an example of industrial biologisation. With the innovative photobioreactor, algae can be automatically cultivated and their growth controlled. The algae cells, through photosynthesis in their chloroplasts, convert sunlight, carbon dioxide and water into oxygen and chemical energy carriers or organic recyclable materials. With automation technology from Festo, for example for optimal gassing and mixing, algae can absorb one hundred times more carbon dioxide than land plants such as trees or maize.

As part of their metabolic processes, algae produce fatty acids, colour pigments and surfactants. These can be used as the raw materials for the production of medicines, food, plastics or cosmetics. Unlike petroleum-based products, the biobased end products can usually be biodegraded and, in keeping with an overall circular economy, always recycled in a climate-neutral manner.

During their work on the PhotoBionicCell, the researchers focused on the cultivation of the blue-green algae Synechocystis. They produce colour pigments, omega-3 fatty acids and polyhydroxybutyrate (PHB). When this PHB has been extracted, it can be processed by adding other substances, and used for example in 3D printing.

A major challenge for bioreactors is how to precisely determine the volume of biomass. Festo relies on a quantum technology sensor supplied by the start-up Q.ANT to do this. It returns accurate information on the growth of the organisms in real time. Using microfluidics such as pumps to precisely control  minute volumes of liquid, the algae are automatically and continuously pumped in the quantum sensor. The quantum sensor is able to optically analyse individual cells so that the amount of biomass can be precisely determined. In addition, it uses artificial intelligence (AI) to examine the cells for their vitality. Only then is it possible to anticipate and react to process events and to intervene in a controlled way.

Digitalised laboratory

Traditionally, many laboratory analyses have been done manually, a slow process that can result in errors. The automation of such laboratory systems in the future will enable all required data to be read directly and in real-time.

To achieve this, in-house developed software is used for the PhotoBionicCell. The dashboard allows multiple photobioreactors to be displayed with the current data situation and live images. Changes to parameters and the corresponding evaluations can be made around the clock and even remotely. Users can thus respond to changes in the bioreactor at any time and, for example, start harvesting the product at the optimum time.

The developers at Festo are also using AI to evaluate the data. This allows the bioreactor to be optimised for propagation of the algae cultures or to maintain specified growth parameters with minimal energy input.


Key Points

  • With automation technology from Festo algae can absorb one hundred times more carbon dioxide than land plants such as trees or maize
  • During their work on the PhotoBionicCell, Festo researchers focused on the cultivation of the blue-green algae Synechocystis
  • AI has helped to optimise the bioreactor for propagation of algae cultures or maintain specified growth parameters with minimal energy input
